Practical Application and Safety Components of Photovoltaic Combiner Boxes

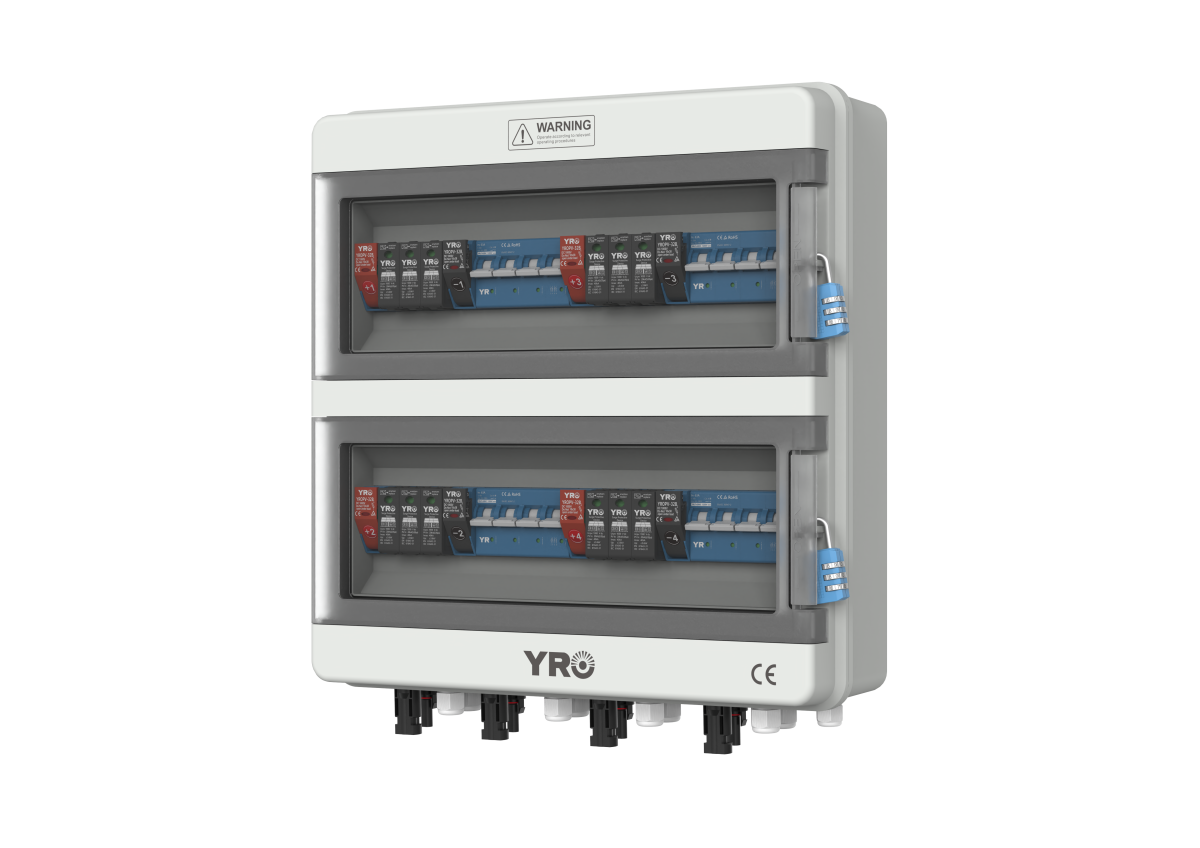

In the evolving landscape of renewable energy solutions, photovoltaic (PV) systems play a pivotal role. Central to these systems is the photovoltaic combiner box, a critical component designed to streamline the efficiency and safety of solar arrays. This article explores the use scenarios of PV combiner boxes in field applications and highlights the indispensable roles of circuit breakers and surge protectors housed within these units.

1.Use Scenarios of PV Combiner Boxes

Photovoltaic combiner boxes are primarily utilized in medium to large-scale solar installations, including residential, commercial, and utility solar farms. Their main function is to combine the output of several solar panels into a single electrical circuit, thus reducing the complexity and enhancing the manageability of the electrical wiring systems. By consolidating multiple inputs into one output, combiner boxes minimize the cable size needed to connect the solar array to the inverter, reducing overall system costs and improving electrical efficiency.

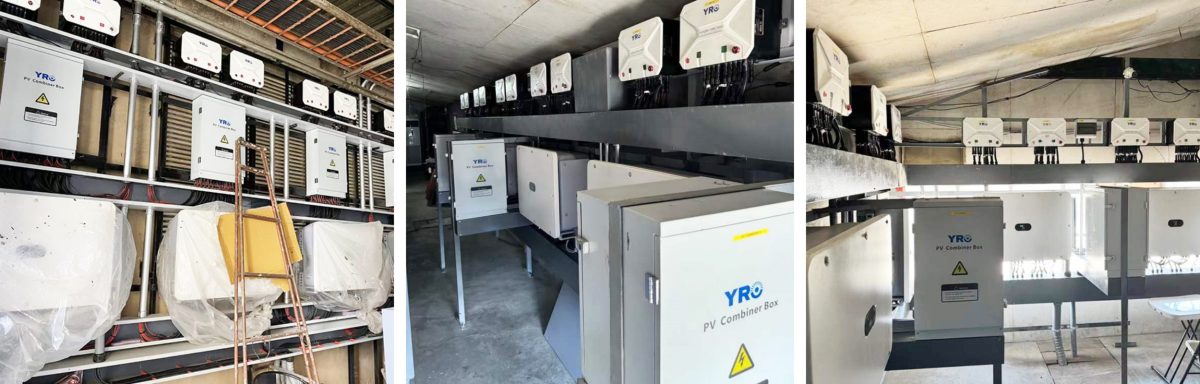

A typical field application scenario for a PV combiner box is in a large solar farm located in remote or harsh environments. Here, combiner boxes are strategically placed close to the solar arrays to reduce voltage drop across long distances. This setup not only optimizes power generation but also facilitates easier maintenance and monitoring, crucial in expansive installations.

2.Role of Circuit Breakers

Circuit breakers within PV combiner boxes serve as the first line of defense against overcurrent conditions, which can lead to potential fire hazards or damage to equipment. These devices are meticulously selected based on the current-carrying capacity and the system’s voltage specifications. In the event of an overcurrent or short circuit, the circuit breaker will trip, effectively disconnecting the affected part of the solar array, thus protecting the integrity of the entire system.

For instance, in a PV system installed in a commercial building, the circuit breaker ensures that any electrical anomalies caused by environmental factors such as debris accumulation or wildlife interference do not escalate into major safety concerns. This protective mechanism is vital for maintaining continuous and safe operation.

3.Role of Surge Protectors

Surge protectors in PV combiner boxes are crucial for shielding sensitive electrical components from voltage spikes often caused by lightning strikes or power surges. These devices work by diverting excess voltage away from the electrical circuitry of the PV system into the ground. This protection is especially critical in areas prone to severe weather conditions, where lightning strikes might be frequent.

Consider a solar installation in a lightning-prone area; without effective surge protection, a single lightning strike could potentially cause irreparable damage to the solar inverter and other connected electrical equipment. By integrating surge protectors within the combiner boxes, the system is safeguarded, thus ensuring longevity and reducing maintenance costs and downtime.

Photovoltaic combiner boxes are not merely junction units but are vital for the safety, efficiency, and reliability of solar power systems. The integration of circuit breakers and surge protectors within these boxes is essential for protecting the solar arrays from overcurrents and voltage surges, respectively. As solar technology advances and its adoption increases, the role of PV combiner boxes will continue to be crucial in enhancing the performance and safety of solar installations worldwide.

This description encapsulates the essential roles and scenarios associated with PV combiner boxes, emphasizing the importance of their safety components in maintaining the resilience and efficiency of solar energy systems.

Customization and Future Developments by Yirui

At Yirui, we understand that different solar installations require unique solutions. To address this, we offer OEM customization for our photovoltaic combiner boxes, ensuring that each product can be tailored to meet the specific needs and specifications of various projects. Whether it’s adjusting the capacity, the number of inputs, or the type of protection features, our aim is to provide a perfectly matched combiner box that enhances the efficiency and safety of any solar power system.


Looking ahead, Yirui is excited to announce that we will soon be expanding our range of combiner boxes with new specifications. These upcoming models are designed to offer even greater flexibility and performance, catering to the evolving demands of the renewable energy market. Stay tuned for these innovations, which promise to further empower solar technology users and facilitate smoother, more efficient energy production.


Stay connected with Yirui for these future developments and explore how our tailored solutions can enhance your solar installations. We are committed to advancing solar technology with innovative products that meet the highest standards of quality and reliability.
