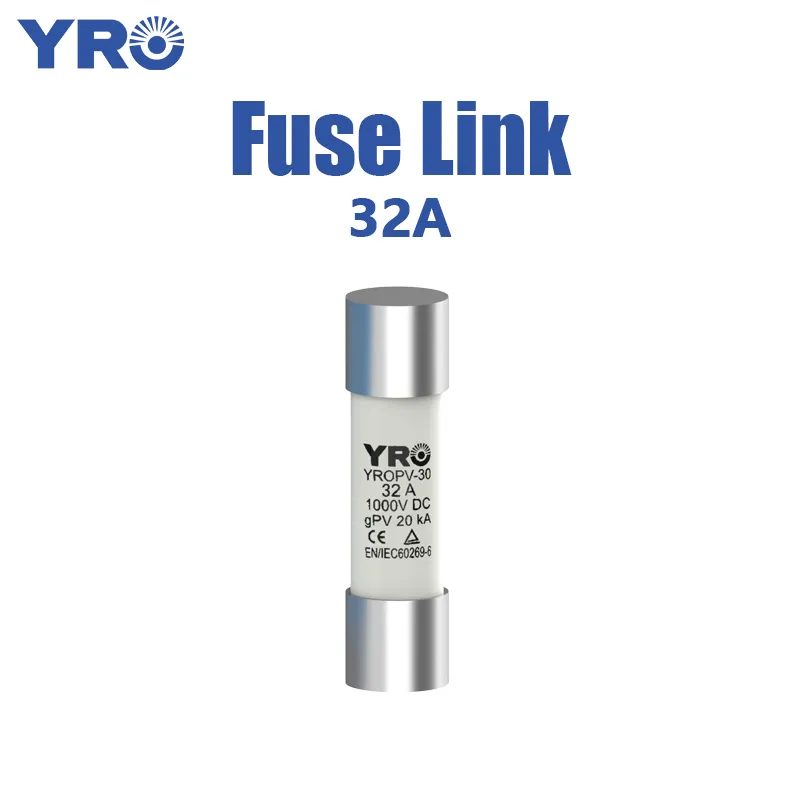

Photovoltaic Copper Fuse Link 32A
Photovoltaic Copper Fuse Link 32A
DC systems use the YRO photovoltaic fuse link as a safety protection component, which features a 32A rated current, 10×38mm dimensions, and 20kA breaking capacity. Photovoltaic power generation systems, as well as other DC circuit protection applications, employ this component.
GET A QUOTE
Product Introduction
When the current exceeds the safety value, the metal wire inside the fuse core will melt rapidly, cutting off the circuit. gPV stands for conversion to photovoltaic system design. “g” indicates full-range breaking capability, and “PV” indicates dedicated to photovoltaic DC systems. The most typical application scenario is the DC combiner box, which provides short-circuit protection at the output end of the combiner box to prevent the superposition of multiple series and parallel currents from damaging the equipment.
In addition, its breaking capacity is 20kA, which means that even if a short-circuit current as high as 20,000 amperes suddenly occurs, it can quickly and safely disconnect. This capability is of great significance in photovoltaic scenarios. Sometimes the line distance is long and the voltage is high. Once a short circuit occurs, the current will be very large. Without sufficient breaking capacity, it is simply impossible to stop it.
Product Description
Strong adaptability: It can be used in conjunction with most DC fuse bases and is suitable for installation in combiner boxes, inverters, distribution cabinets and other locations.
Factory self-operated, stable quality: YRO’s own factory produces, controlling costs while ensuring quality, and can provide customization and bulk services.
Product Feature
Core material: High-quality copper material is selected inside to ensure the melting speed and electrical conductivity, and enhance the overall stability of the system.
Size specification: 10mm diameter, 38mm length. It is one of the most common fuse core specifications in DC systems and can be used universally with most fuse bases on the market.
Voltage level: It is suitable for the conventional voltage range of DC systems. Users can select the appropriate model according to the actual voltage level.
Product Parameters
| Product Series | YROPV-30 |
| Rated Current | 32A |
| Rated Voltage | 1000V |
| Breaking Capacity | 20kA |
| Ambient Temperature | -30~ +70℃ |
| Fuse Size | 10 x 38mm |
