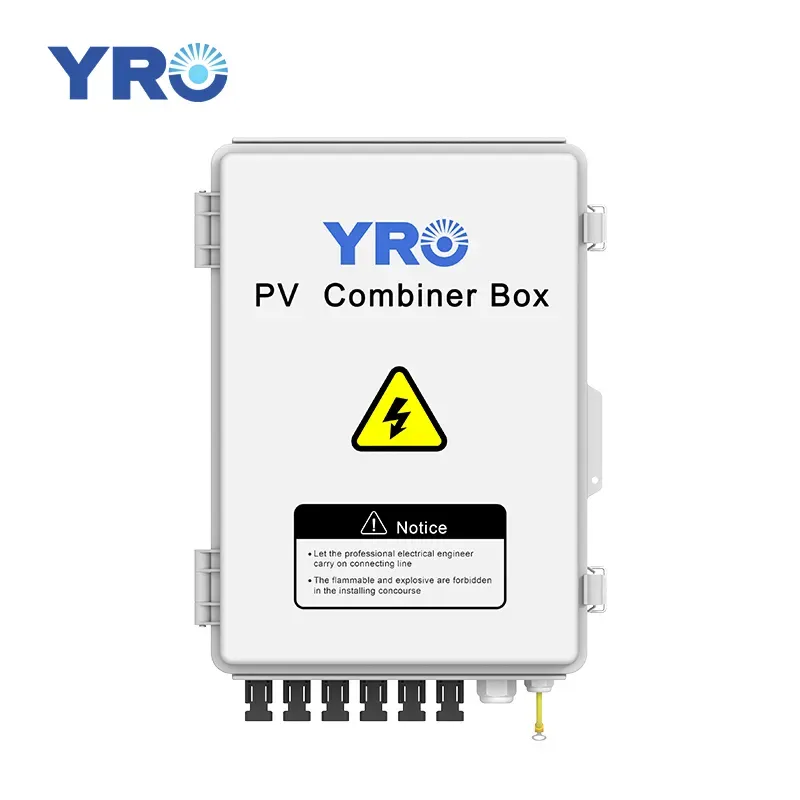

Solar Panel Array Junction Box 6 in 1 out DC 600V
Solar Panel Array Junction Box 6 in 1 out DC 600V
YRO 6 in 1 out 600V array junction box solar meets the international CE certification standard. Its IP65 waterproof design provides effective protection for equipment in a variety of outdoor environments. The housing is made of ABS plastic. Compared with similar products, this junction box has higher integration and better protection performance, which is ideal for solar energy systems.
GET A QUOTE
This content will appear inside a popup…
Product Introduction
The YRO pv string combiner box is designed to fully consider the needs of multi-input application environments. First of all, the product uses high quality ABS material, which not only has the advantage of lightweight, but also can resist ultraviolet light and corrosion, especially suitable for long term use in complex outdoor environments.
Secondly, the CE certification not only reflects the high standards of this product in design and manufacturing, but also an important guarantee for user trust.
At the same time, the 6 in 1 out box adopts IP65 class waterproof design, from the external seal to the internal protection has been verified by experiments. Whether it is rain, sand or wet environment, it can effectively prevent the intrusion of external moisture and dust, ensuring that the internal electronic components are always in a safe state.
Product Description
The photovoltaic junction box has many outstanding features, making it stand out among many similar products. First, the product is made of ABS material, which is lightweight and durable.
Moreover, IP65 waterproof design is a highlight of this product. In the changeable outdoor environment, waterproof performance is particularly critical. The solar junction box uses a rubber seal to effectively prevent the intrusion of rain, dust and other external pollutants.
The installation and maintenance of the product are also fully considered user experience. All interfaces are optimized design, clear wiring, fixed firmly.
Product Feature

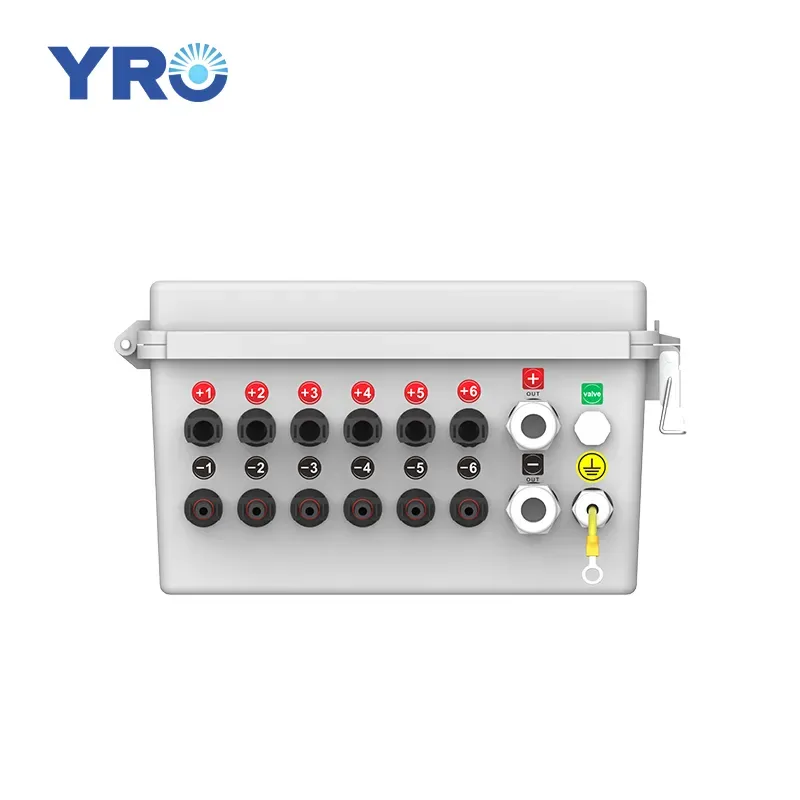

Each connection port is clearly marked with positive and negative electrode identification, making the installation process more intuitive.
The internal components are designed with a guide rail for easy installation.
Product Parameters
| Product Series | YRABS-6/1 DC 600V |
| Protection Level | IP 65 |
| Max Operation Voltage | 600V |
| Default Fuse | 15A 1000V |
| Circuit Breaker | 2P 63A 600V |
| Surge Protector | 2P 40kA 600V |
| Solar Connector | 30A 1000V |
