RT18-32X AC Fuse Holder for 10x38mm Fuse Link
RT18-32X AC Fuse Holder for 10x38mm Fuse Link
YRO RT18-32X AC fuse is an electrical protection component, that protects equipment and circuit safety by cutting off the circuit when the current is too high. The product has passed CE certification, complies with EU safety standards, and is suitable for use in homes, factories, and commercial places.
GET A QUOTE
Product Introduction
The core mission of the YRO AC fuse is “to protect your equipment at the first moment when danger strikes.” As long as the current suddenly surges (such as in a short circuit or overload), the special metal wire inside the fuse will quickly melt, forcibly cutting off the circuit to prevent equipment from being burned out or causing more serious accidents.
The functional class of the RT18-32X AC fuse is gG. “g” means the fuse has full range breaking capability—simply put, it can interrupt all fault currents from the minimum melting current (i.e., overload current) to the maximum breaking current (i.e., short circuit current).
“G” indicates that the RT18-32X AC fuse is suitable for general purposes, meaning universal protection. It can be used to protect cables, wires, distribution lines, and general equipment.
Product Description
- Easy Installation
Designed for standard 35mm rail mounting, compatible with common circuit breaker sizes. Electricians don’t need special training—just snap it into the busbar box’s rail.
- CE Passport
Certified by the EU CE mark, complying with international safety standards. This not only proves the high quality of the RT18-32X AC fuse, but also facilitates cross border procurement and use.
Product Feature

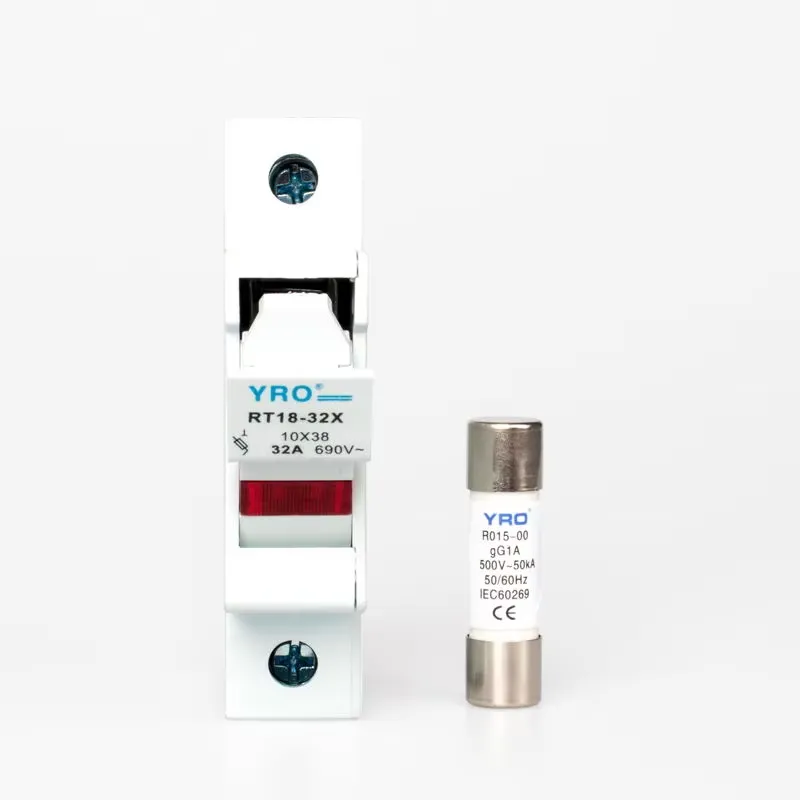

- Easy Fuse Replacement: The fuse core has a ceramic tube structure filled with highpurity quartz sand to enhance arc extinguishing. When the fuse core blows, simply power off, pull out the old core with your fingers, and insert a new one of the same specification to complete the replacement. The RT18-32X AC fuse is compatible with 10×38mm fuse links.
- Convenient Installation: The RT18-32X AC fuse base adopts a DIN rail modular design,and can be directly mounted on standard 35mm metal rails. The base is made of heat resistant, flame retardant plastic with internal metal terminals for screw fixed wiring. Insert the standard 10×38mm fuse link, and installation is complete.
Product Parameters
| Product Series | RT18-32X |
| Rated Current | 32A |
| Rated Voltage | 500V |
| Breaking Capacity | 50kA |
| Ambient Temperature | -30~ +70℃ |
