Electrical Photovoltaic Fuse Holders with Light 32 Amp
Electrical Photovoltaic Fuse Holders with Light 32 Amp

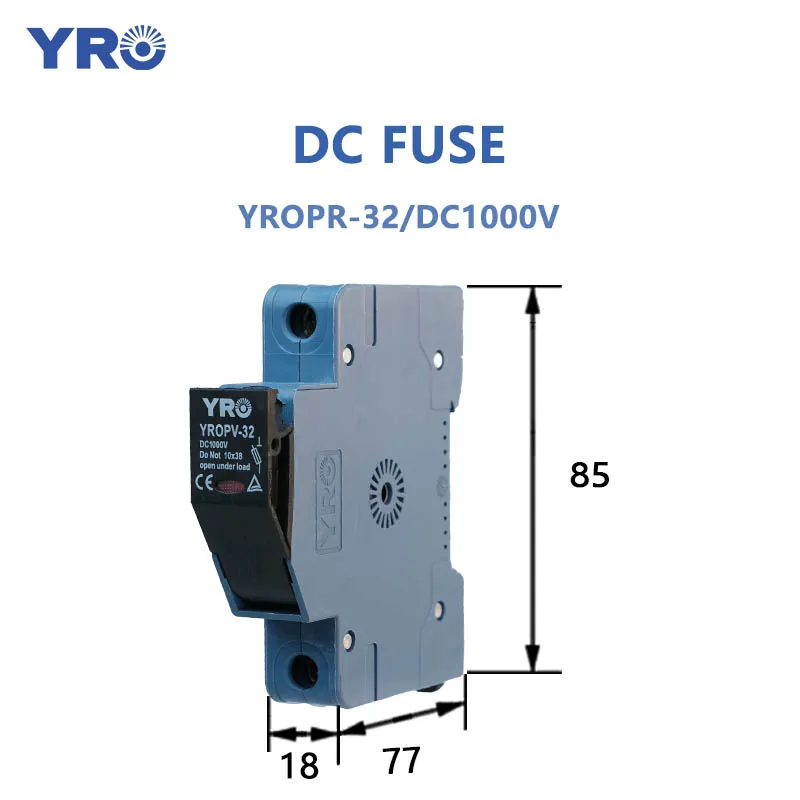

Photovoltaic systems can use the YRO fuse as a circuit protection device, which features CE safety certification and a unique appearance. Its biggest feature is “small size, big power”—only 18mm wide, but capable of withstanding high-voltage environments up to 1000V.
GET A QUOTE
Product Introduction

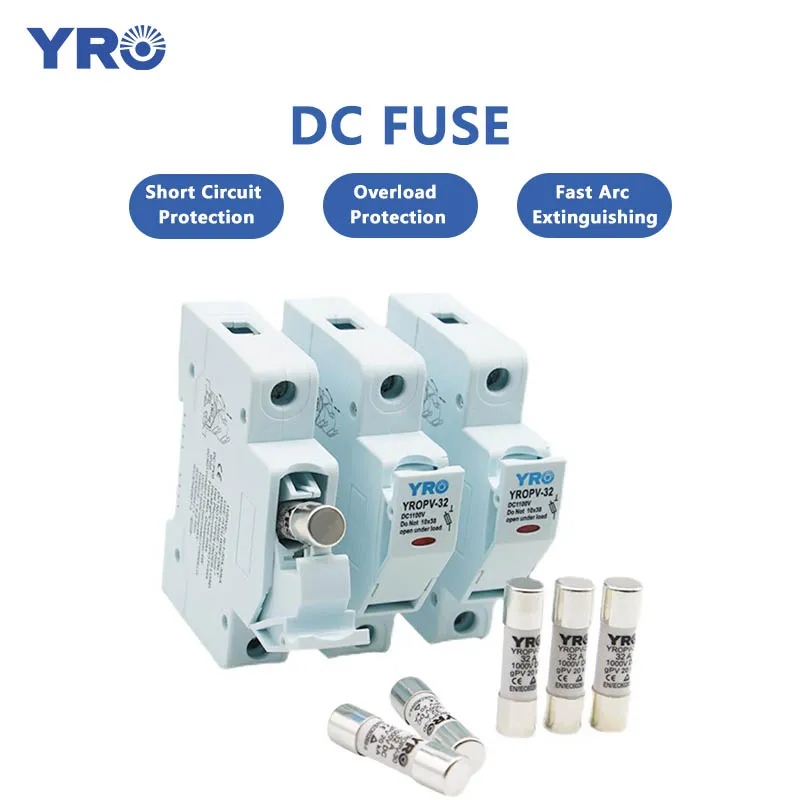

The term “fuse” may sound technical, but its function is simple. When the current suddenly increases beyond what the equipment can handle, it sacrifices its internal DC fuse link to cut off the circuit, preventing subsequent equipment damage or safety hazards like fires. Note: It’s the fuse link that cuts the circuit, not the photovoltaic fuse holders. The fuse link is placed inside the fuse holders and can be replaced after failure.
The advantage of the YRO photovoltaic fuse holders is its CE certification, along with an appearance patent—quality and aesthetics are both firmly held by YRO. Our industrial photovoltaic fuse holders use quartz sand as the filling material, which offers two benefits:
- Quartz sand has excellent insulation and high-temperature stability, quickly absorbing arc energy to help extinguish arcs, and prevent damage to the fuse and circuit.
- Quartz sand has high heat resistance, maintaining stability in high-temperature environments, and preventing deformation or damage to the fuse.
Product Description
- Foolproof fuselink replacement: Changing the fuse link in the photovoltaic fuse is as easy as opening a battery cover.
- CE certification: Complies with EU standards, ensuring safety.
- Appearance patent design: Innovative structure, compact shape, and more aesthetically pleasing.

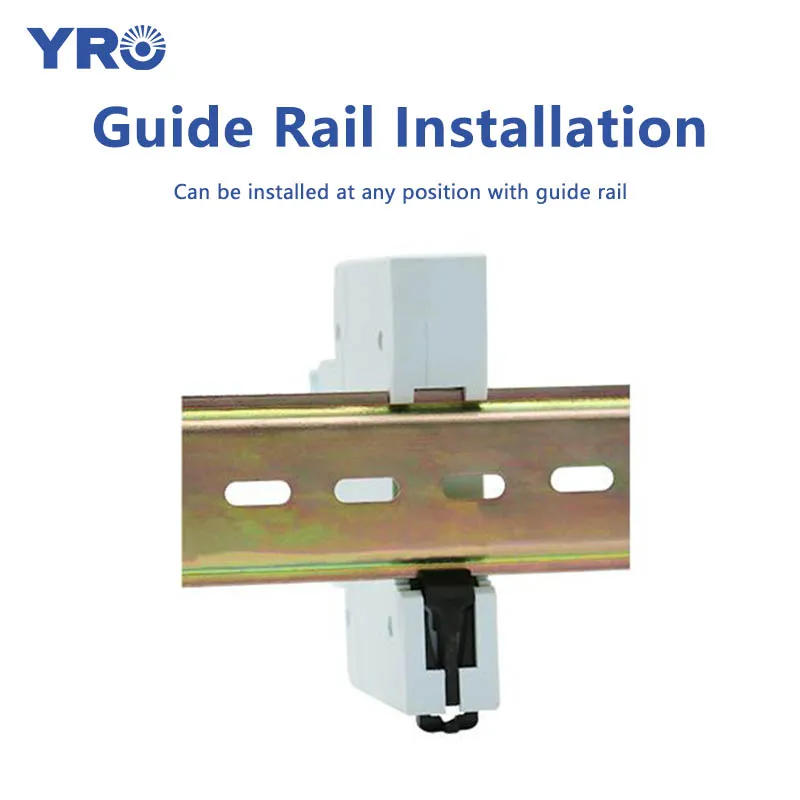

- Compact size: Suitable for installation in electrical boxes or circuit boards with limited space.

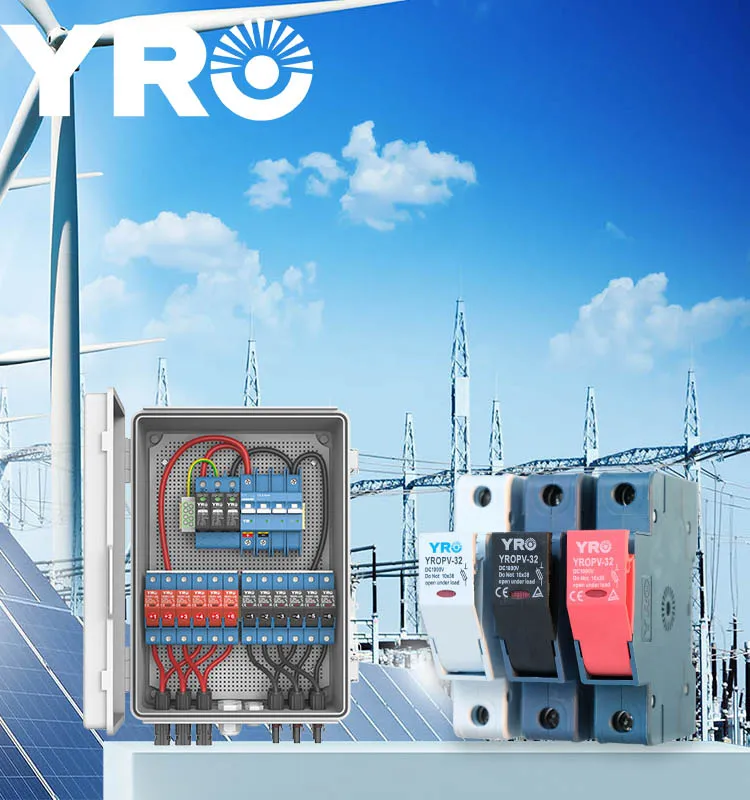

- Designed for photovoltaic systems: Photovoltaic power generation equipment has high requirements for electrical protection devices. The YRO photovoltaic fuse is stable and reliable, promptly cutting off abnormal currents to protect critical equipment like inverters and combiner boxes.
Product Feature
In terms of details, the sharp edges are rounded, not only improving appearance but also preventing cuts during installation.

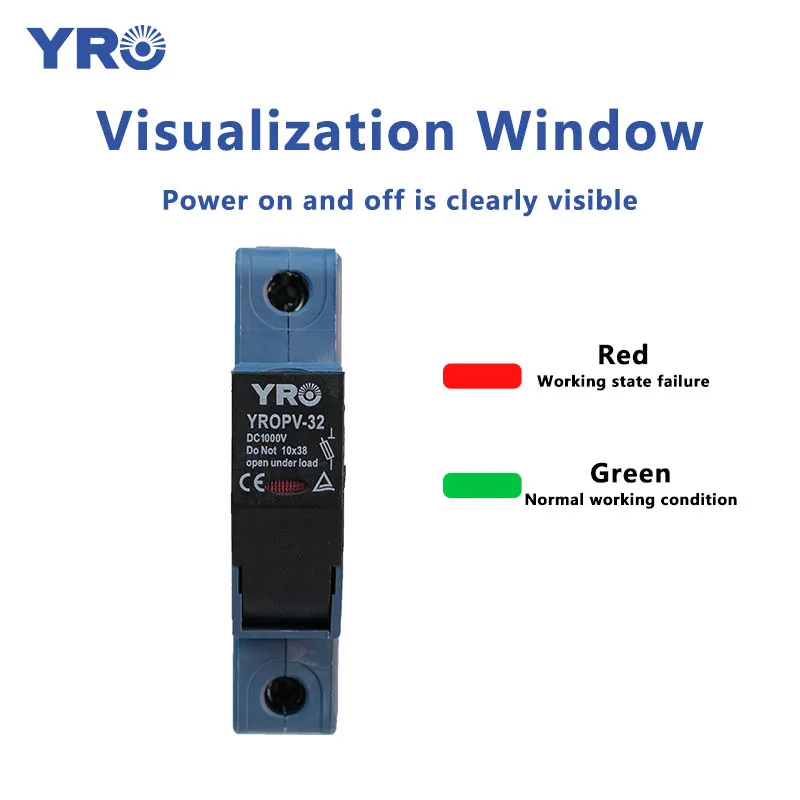

Even more thoughtful is the built-in fault indicator light, which automatically turns red after tripping—no need to test each one with a multimeter anymore.
Product Parameters
| Product Series | YROPV-32 |
| Rated Current | 32A |
| Rated Voltage | 1000V |
| Breaking Capacity | 20kA |
| Ambient Temperature | -30~ +70℃ |
| Power Consumption | 3.5W |
