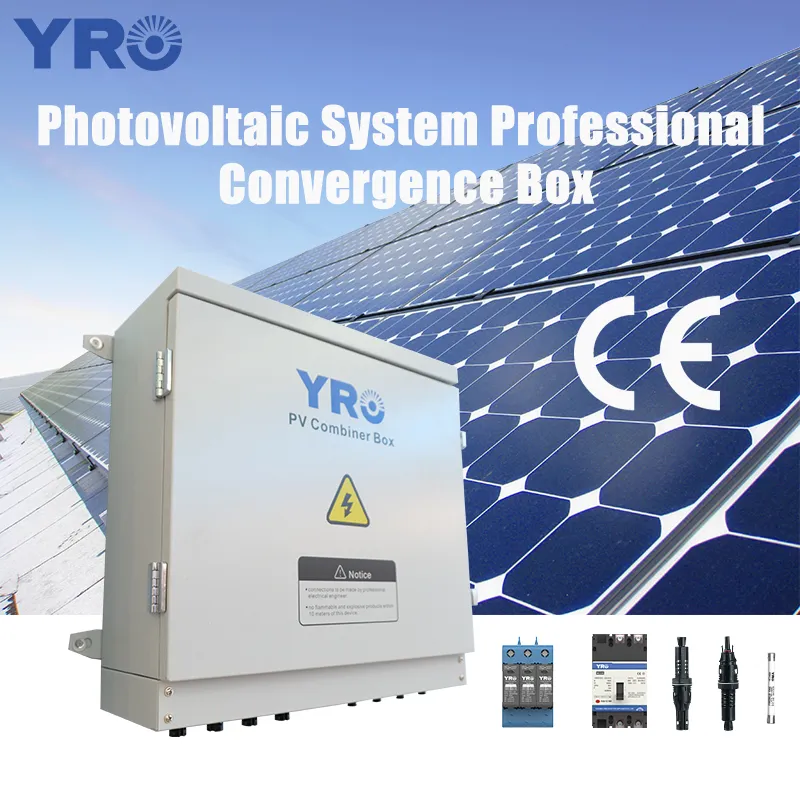

Upgraded DC Iron Combiner Box with Solar Connectors
Upgraded DC Iron Combiner Box with Solar Connectors
The highlight of this upgrade lies in its completely redesigned internal structure. The fuse protection function, which was previously external, is now integrated directly into the terminal connectors. This redesign not only frees up more internal space for operation but also significantly improves heat dissipation efficiency.
GET A QUOTE
This content will appear inside a popup…
Product Introduction
Core Upgrade: Terminal Connectors with Built-in Fuse Links
Traditional combiner boxes house separate fuse holders inside the box, which occupy space and hinder cooling. YRO has innovatively embedded the fuse links directly into each connector, offering four major advantages:
- Space previously taken up by the fuse holders is now available, making wiring more flexible.
- Eliminates the need for separate fuse installation, saving time.
- Reduces costs by removing the need to purchase extra fuse holders.
- Enhances overall efficiency and simplifies the installation process.
Product Description
– Optimized Terminal Design: Supports fuse link integration, enhancing both system safety and thermal performance.

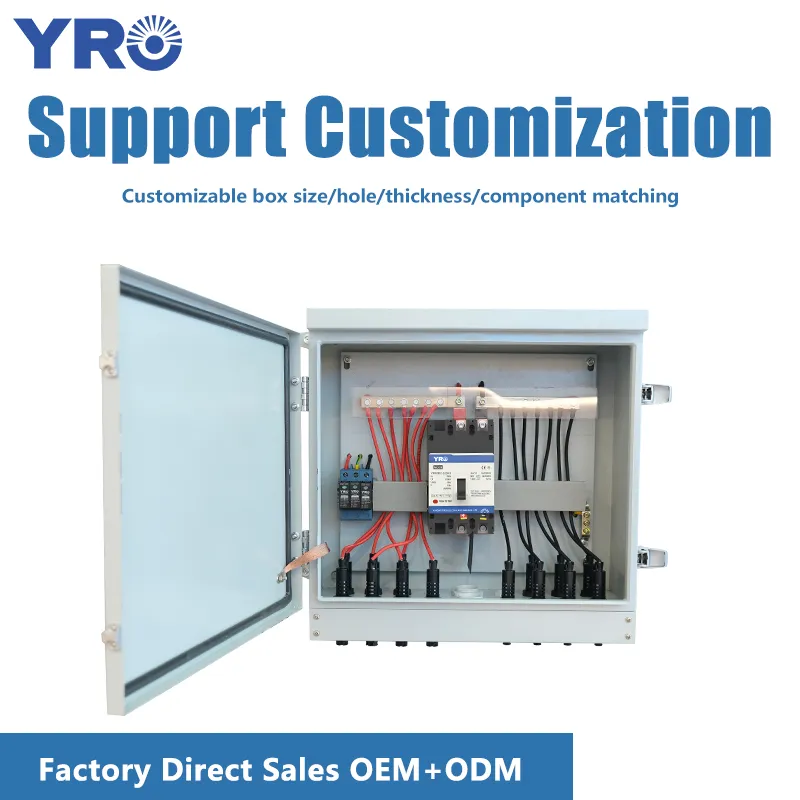

– Spacious Interior: More room inside allows for easier wiring and maintenance.
– Sturdy Construction: The iron enclosure is robust and durable, suitable for various demanding environments.
Product Feature

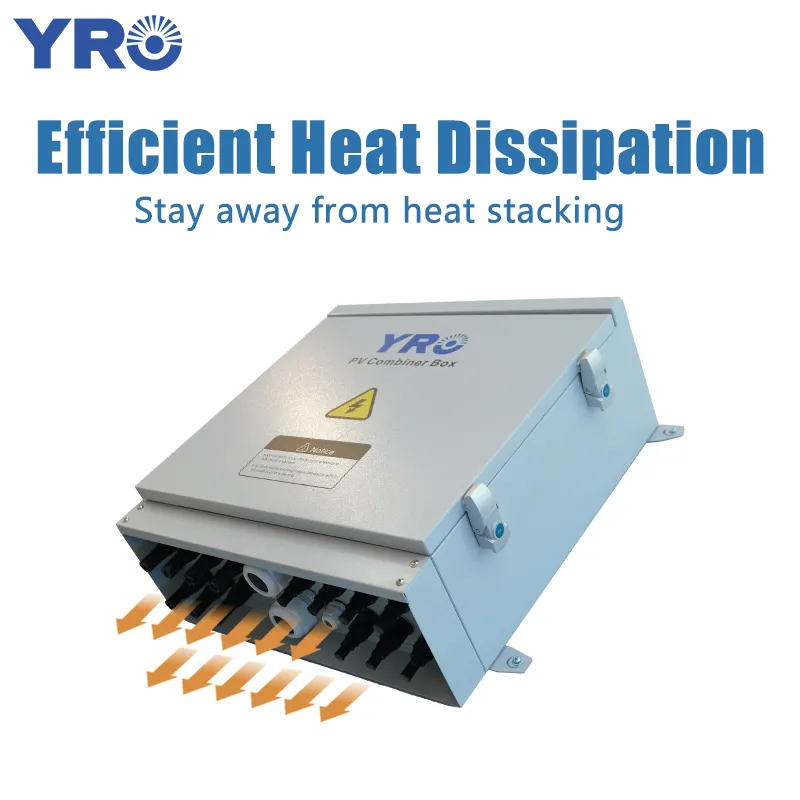

– Clear Cable Routing: Internal rails and terminal blocks are neatly arranged for organized wiring, improved airflow, and efficient heat dissipation.
– Mounting Method: Wall mounted design fits a wide range of installation scenarios.
– Tailored Dimensions: Custom sized to match mainstream PV module configurations, ensuring compatibility and preventing overcrowding.
Product Parameters
| Product Series | YRHLX-6/1 DC 1000V |

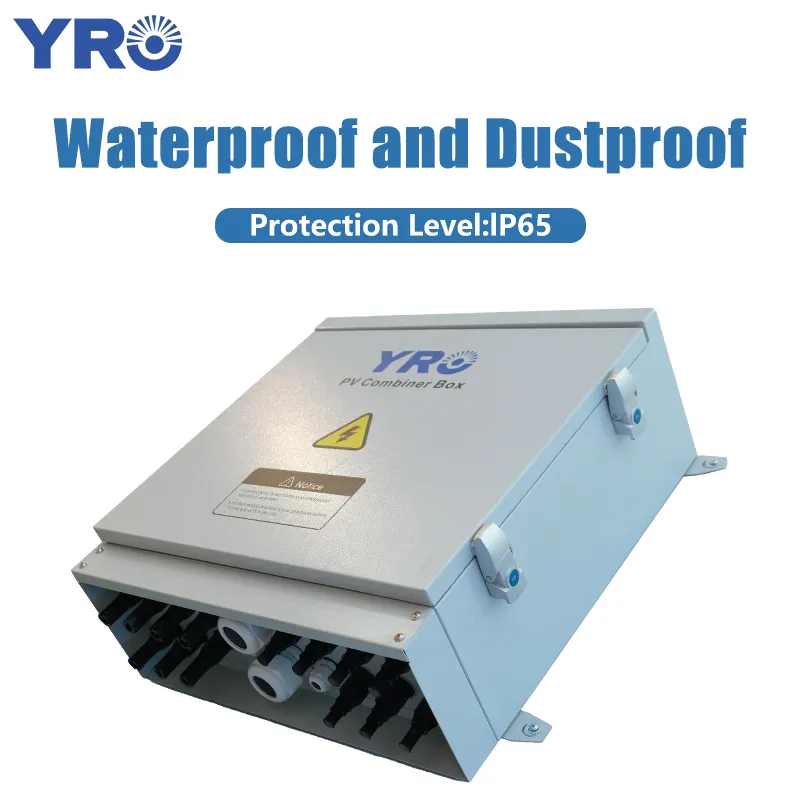

| Protection Level | IP 65 |
| Max Operation Voltage | 1000V |
| Molded Case Circuit Breaker | 3P 125A 1000V |
| Surge Protector | 3P 40kA 1000V |
| Solar Connector | 30A 1000V |
