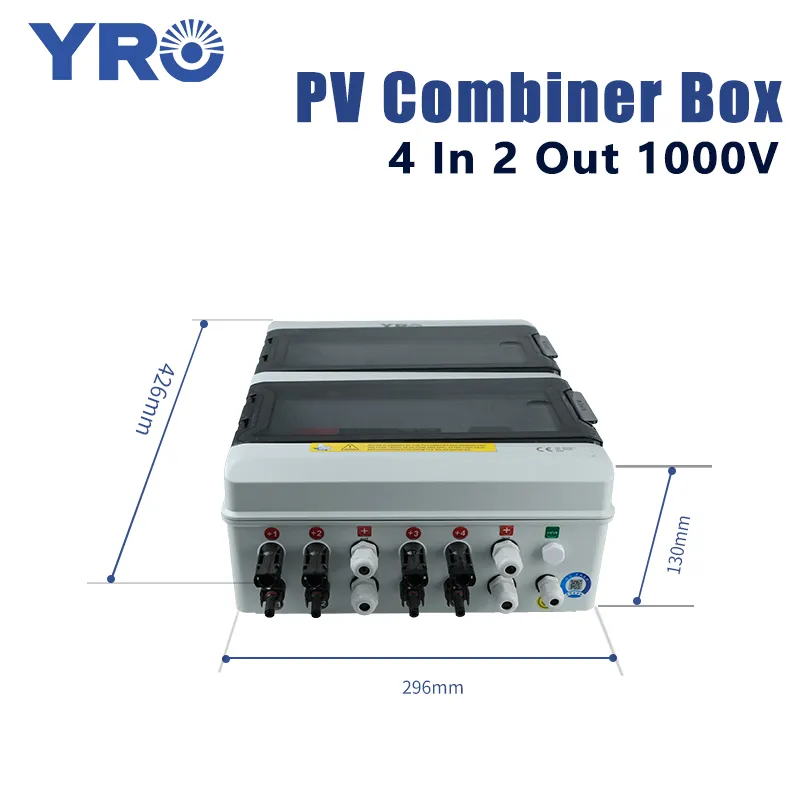

Solar Combiner Lock Box 4 In 2 Out 1000V High Quality Isolator Switch
Solar Combiner Lock Box 4 In 2 Out 1000V High Quality Isolator Switch

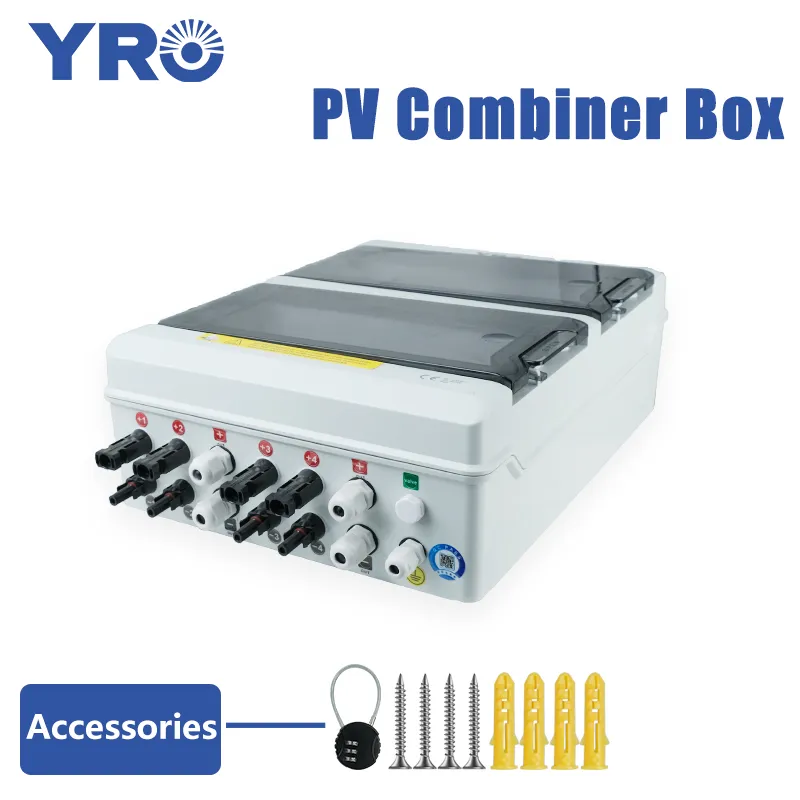

The YRO lockable combiner box is a “current collection box” designed for solar power systems. It combines 4 input circuits into one and then splits them into 2 output circuits, while also providing lightning protection and overload protection. The combiner box is not only CE certified, ensuring quality, but its housing is also waterproof and dustproof.
GET A QUOTE
This content will appear inside a popup…
Product Introduction
Anyone familiar with electrical systems knows that wiring in power generation systems can be extremely complex. With the YRO combiner lock box, things become much simpler. It connects 4 input lines, combines them inside the box, and then splits them into 2 output lines, delivering the current to the inverter or DC control system. This reduces the number of wires, making the system more organized and easier to troubleshoot.

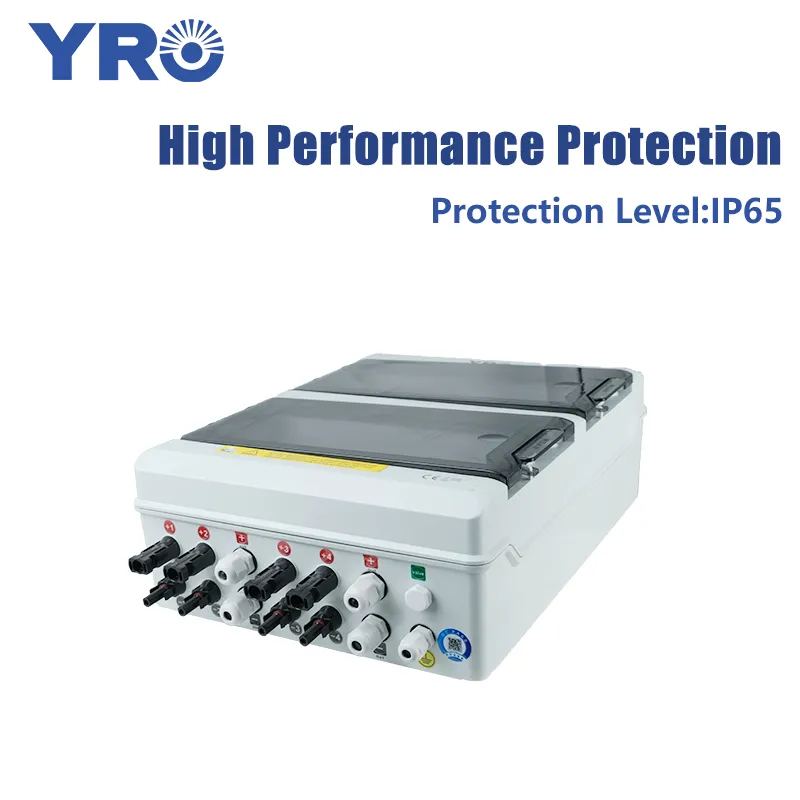

The box’s housing has an IP65 waterproof and dustproof rating, meaning it can operate normally even in rain or dusty conditions. Additionally, the box is lockable, ensuring the safety of the wiring and internal components.
An isolation switch is installed inside the junction box to ensure complete isolation from live parts for maintenance. If you have special requirements, you can replace the isolation switch with a circuit breaker. If you need custom branding, YRO offers customization services—whether for the box’s appearance or internal configuration, we can tailor it to your needs.
Product Description
Strong Protection: With an IP65 rating, it’s waterproof and dustproof, making it durable for outdoor use even under harsh weather conditions.
Reliable Safety: The lockable design prevents unauthorized access. The built-in circuit breakers protect the circuit, and they can be replaced with isolation switches for even higher safety.
Internationally Recognized: CE certified, making it suitable for use in many countries.
Great Value: Improved quality without a price increase—offers exceptional cost performance.
Customizable: Supports customization—we strive to meet all your requirements.
Product Feature
Housing Design: The box’s housing is made of high quality, durable plastic with a high protection rating and a unique appearance compared to other combiner boxes. The lockable design adds an extra layer of security.
Internal Configuration: The isolation switch in the box is of reliable quality, reliable quality, and can safely disconnect the circuit during maintenance. The internal wiring is neatly arranged, making installation, maintenance, and troubleshooting convenient.
Certification & Service: CE certification confirms that YRO adheres to strict international standards during production. The customization service further demonstrates YRO’s commitment to customer satisfaction.
Product Parameters
| Product series | YRPVB-4/2 ISO DC 1000V |
| Protection Level | IP 65 |
| Max Operation Voltage | 1000V |
| Default Fuse | 15A 1000V |
| Isolator Switch | 4P 32A 1000V |
| Surge Protector | 3P 40kA 1000V |
| Solar Connector | 30A 1000V |
