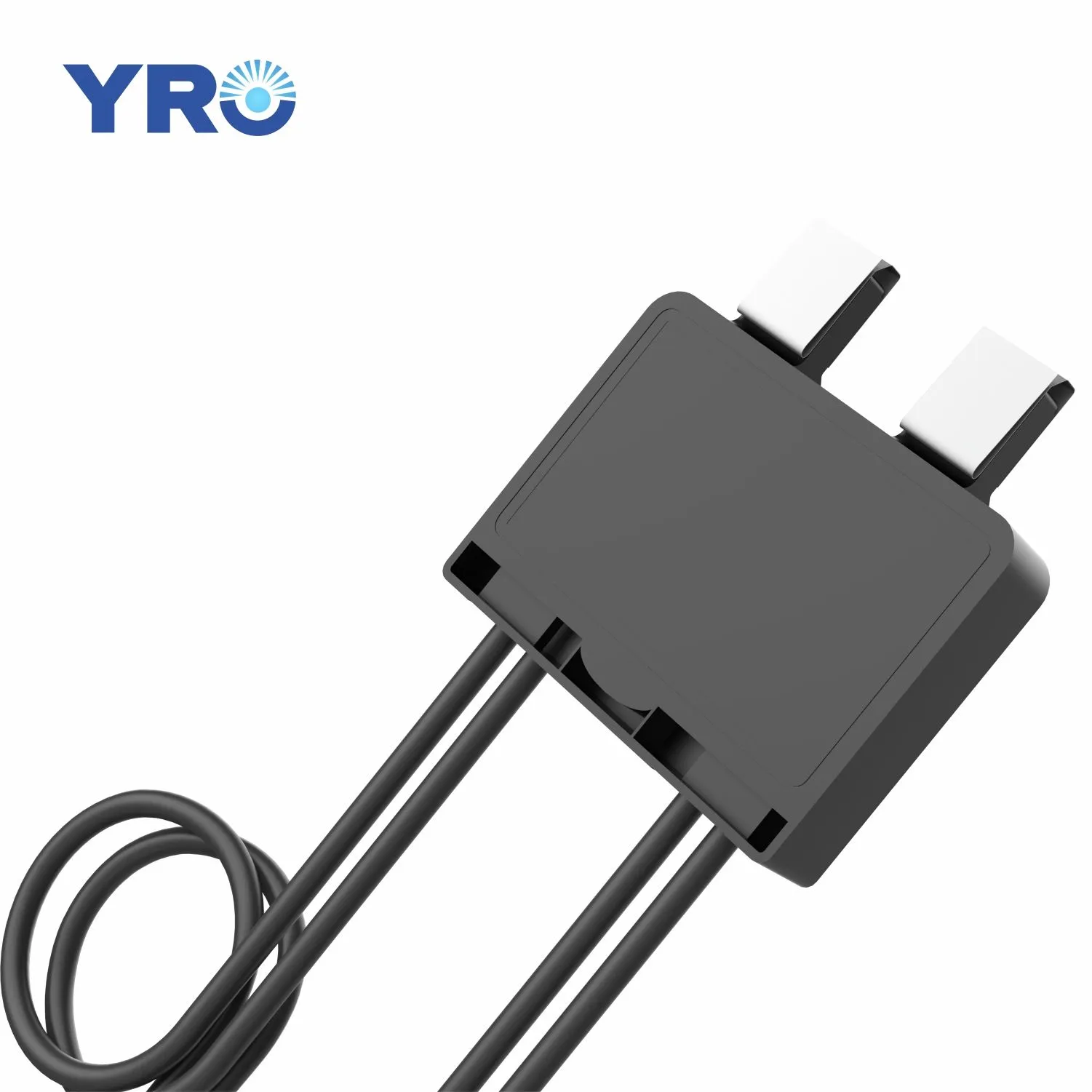

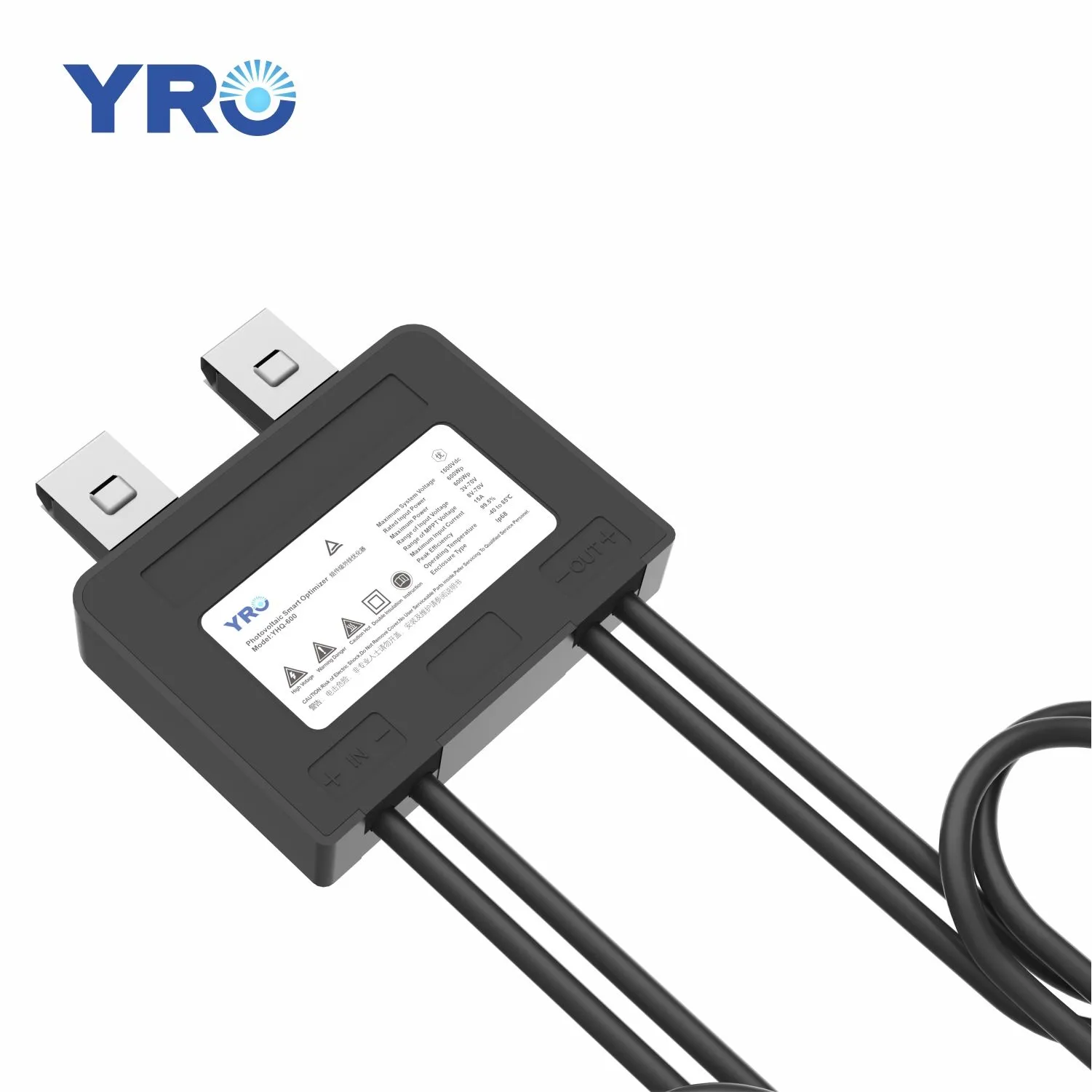

MPPT Opitimizer Solar Module YHQ-600
MPPT Opitimizer Solar Module YHQ-600
At a time when the iteration of renewable energy technologies is accelerating, solar power systems are experiencing a transition from scale expansion to refined operation. the core value of the YRO solar optimizer lies in the breakthrough of the “barrel effect”, when a solar panel in the array is shading, dust or aging causes output to drop, the optimizer can stabilize the working point of that PV panel at its own maximum power point, avoiding the power loss of the whole string.
GET A QUOTE
This content will appear inside a popup…
Product Introduction
The PV optimizer is mounted on the solar panels, and monitors and adjusts the output in real time to reduce the power loss caused by shading, dust coverage or module mismatch. Compared with traditional centralized inverters, the optimizer enables more efficient energy conversion and independent management of each module, thus enhancing the power generation capacity of the entire PV system.
Product Description
1、Dynamic Adaptive Regulation
The optimizer has a built in high sensitivity sensing module that continuously tracks light intensity, temperature changes, and the effects of surrounding shading on the solar panels. Regardless of cloud shading or seasonal temperature fluctuations, the optimizer can respond quickly and automatically adjust the working status of the PV modules.
2、Allweather stable operation
Whether it is a hot desert, cold north or rainy coastal area, the industrial grade protection design enables the optimizer to keep working reliably under extreme weather.
Product Feature
Improve power generation efficiency: Dynamically optimize the power output of solar panels to reduce losses due to shadow shading or uneven aging.
Component level management: Each solar panel can be individually monitored and controlled, improving O&M efficiency and facilitating troubleshooting.
Enhanced system reliability: Reduces power loss between components and improves overall system stability.
Strong compatibility: Applicable to many types of PV modules and inverters, adapting to different system requirements.
Product Parameters
| Product Series | YHQ-600 |
| Maximum Input Power | 600W |
| Operating Voltage Current | 3-70V |
| Maximum Input Current | 15A |
| MPPT Voltage Range | 8-70V |
| Over Current Protection | 17A |
| Protection Degree | IP68 |
| Peak Conversion Efficiency | 99.5% |
| Monitor | PLC Gateway(Option) |
| Communication | 2.4G WiFi/RS485(Option) |
