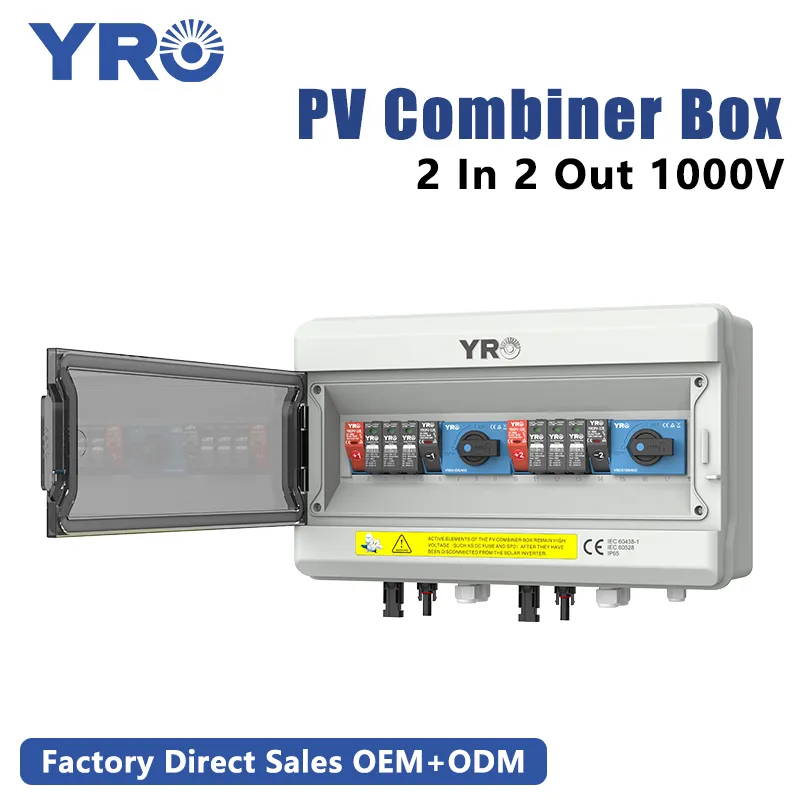

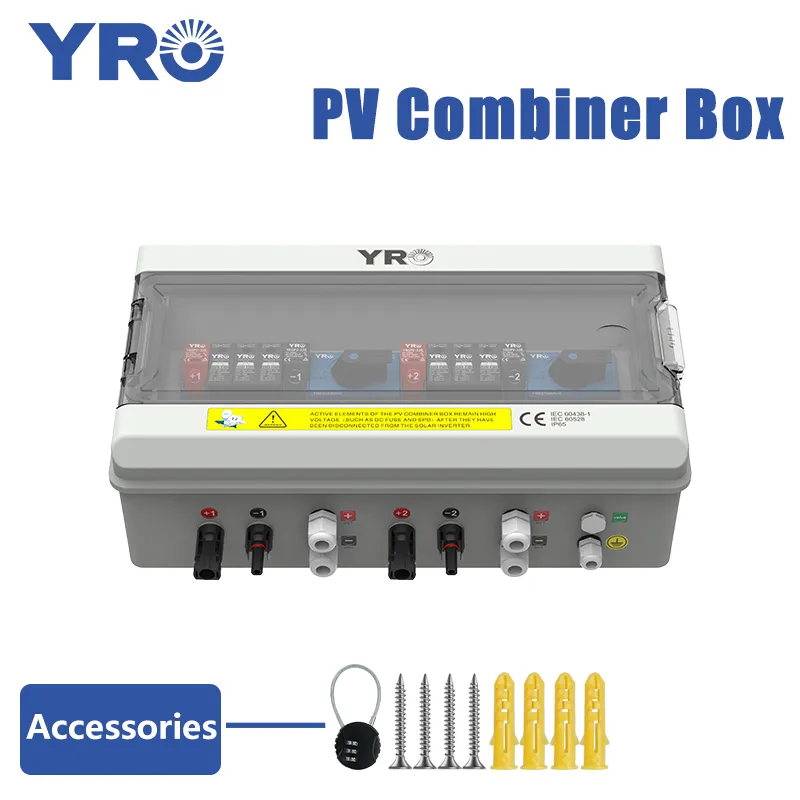

IP65 String Combiner 2 In 2 Out 1000V CE Certified
IP65 String Combiner 2 In 2 Out 1000V CE Certified
The YRO 2 in 2 out 1000V PV combiner box acts as a centralized hub for solar installations, aggregating DC output from multiple electrical components while managing current and protecting equipment. The junction box operates at 1000V DC capacity and features a dual channel input/output configuration, simplifying system maintenance.
The IP65 rated seal ensures that dust and water are kept out. The additional volume does not increase the price, and the new lock adds a layer of insurance to the junction box. The unique appearance makes the YRO box stand out among many products.
GET A QUOTE
This content will appear inside a popup…
Product Introduction
YRO 1000V combiner box, can be two input direct current flow through the internal collector module into an output line, simplifying the electrical connection between the photovoltaic module and the inverter, while reducing the complexity of wiring.
Multiple protection devices are integrated inside the distribution box, to ensure that the system can automatically disconnect the current in extreme situations, avoiding the danger of short circuit, overload or overvoltage. In addition to electrical protection, the YRO combiner box is also waterproof and dust-proof, making it particularly suitable for outdoor use. Its IP65 protection rating ensures stable operation of the bus, even in adverse weather conditions.
In addition, the YRO DC combiner bus box is equipped with a safety lock design, which enhances the anti-theft capability of the equipment. Its unique appearance design not only meets the practical needs, but also has a certain aesthetic.
Product Description
Current collection and management: The core function of the box is to gather the DC current of multiple photovoltaic modules into a unified output, simplifying the system design and wiring work. It improves the overall efficiency of the photovoltaic system by optimizing the current transmission path.
Protection function: Multiple protection functions are installed in the bus box, including overload protection, short circuit protection and overvoltage protection, which can effectively prevent the damage caused by electrical faults to the system. The protection device can automatically cut off the circuit when there is an anomaly to ensure the safety of the photovoltaic power generation system.

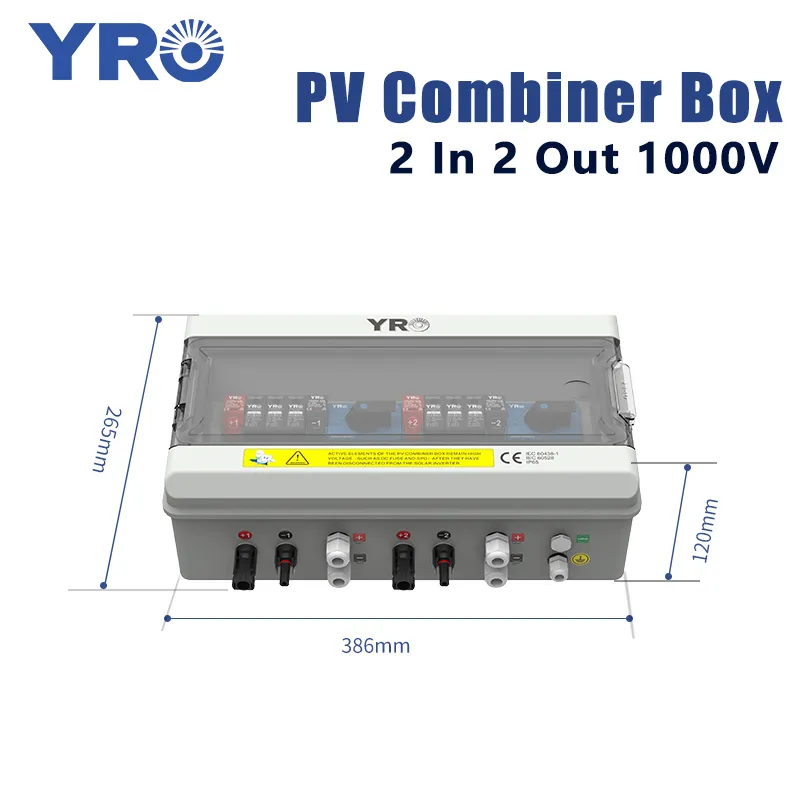

Optimized space utilization: YRO 2 in 2 out design, reasonable optimization of space layout, easy to install and maintain the system. The smaller volume design can save more installation space and improve installation efficiency.
Product Feature
CE certificate certification:
The YRO 2 in 2 out 1000V PV solar box has passed the CE certification, and meets the safety and quality standards of the European market. This certification ensures the high quality and safety of the product, with significant advantages for exports to the global market, especially to the European market.
IP65 waterproof rating:

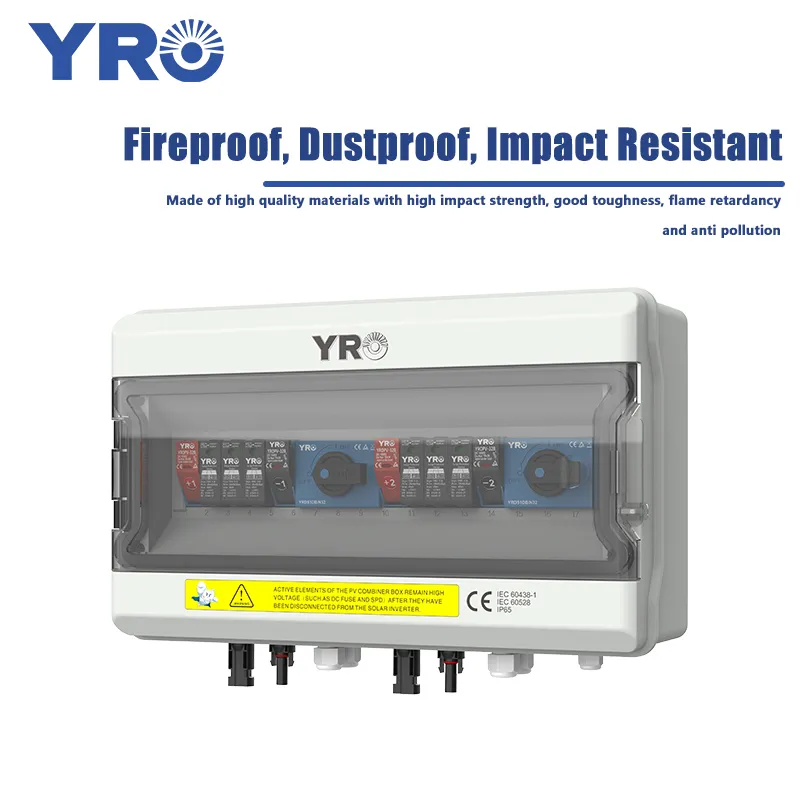

The busbar enclosure reaches the IP65 protection grade to ensure the excellent performance of the equipment in terms of water, dust and corrosion. Even in the rain, dusty environment, the equipment can still maintain efficient operation, not affected by the external environment.
Unique appearance design:
YRO photovoltaic string box has a unique design in appearance, which is not only functional, but also beautiful. The modern design makes it more visually appealing, in photovoltaic systems and can perfectly fit in a variety of installation environments.
Shell lock function:
To enhance security, the shell of the YRO Solarkombinationsbox, is equipped with a lock function to prevent unauthorized personnel from opening the equipment, ensuring the safe operation of the photovoltaic system and avoiding human interference and damage.

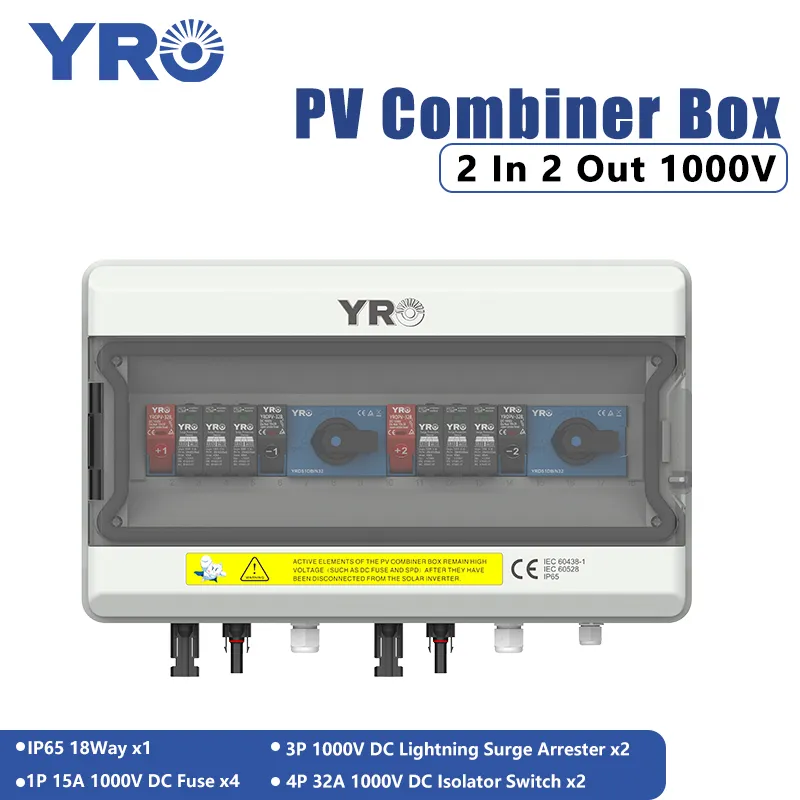

Product Parameters
| Product series | YRPVB-2/2 CB DC 1000V |
| Protection Level | IP 65 |
| Max Operation Voltage | 1000V |
| Default Fuse | 15A 1000V |
| Circuit Breaker | 4P 32A 1000V |
| Surge Protector | 3P 40kA 1000V |
| Solar Connector | 30A 1000V |
