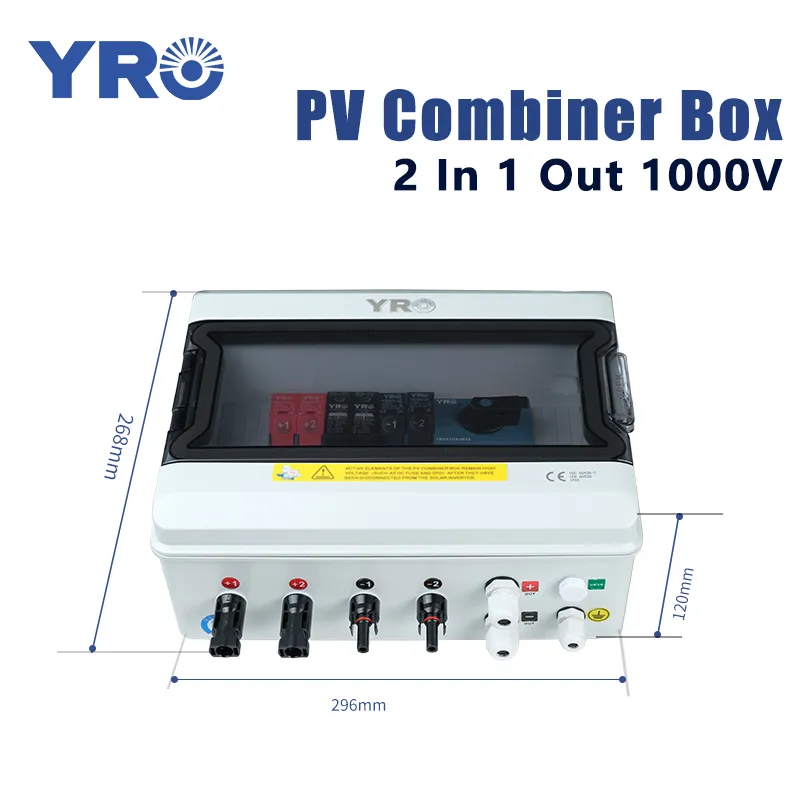

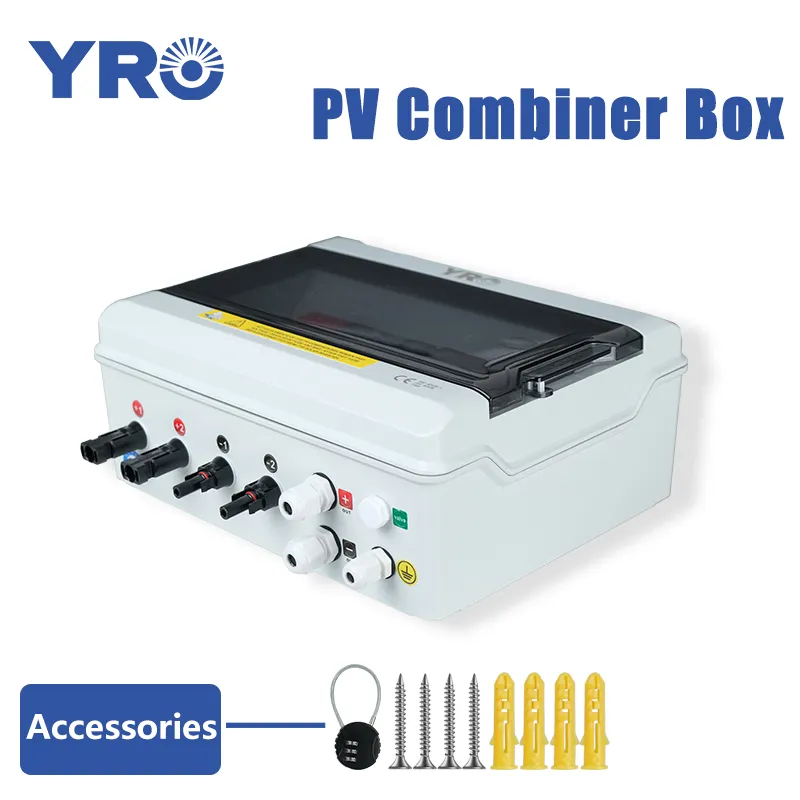

Electrical Solar Power Combiner Box 2 In 1 Out 1000V with Isolator Switch
Electrical Solar Power Combiner Box 2 In 1 Out 1000V with Isolator Switch
YRO 2 in and 1 out 1000V solar combiner box is used for solar power generation system, which can collect the current of two photovoltaic series into one output, supporting up to 1000V voltage. The product is CE certified, water and dust resistant to IP65, suitable for outdoor installation. The interior is equipped with a small isolation switch, unique color, easy to identify. Support OEM customization to meet different customer needs.
GET A QUOTE
This content will appear inside a popup…
Product Introduction
Usually a photovoltaic power generation project, there are a lot of solar panels, if the wires of each board are directly connected to the inverter, the line will be particularly messy, installation and follow-up inspection and maintenance are troublesome. The YRO string box solves this problem. It can concentrate the electricity generated by the two solar panels and then uniformly transmit it to the inverter, greatly simplifying the line.
The box has passed CE certification. CE certification is a certification recognized in Europe, with this certification, indicating that the product meets the safety, health, environmental protection and other standards stipulated in Europe.

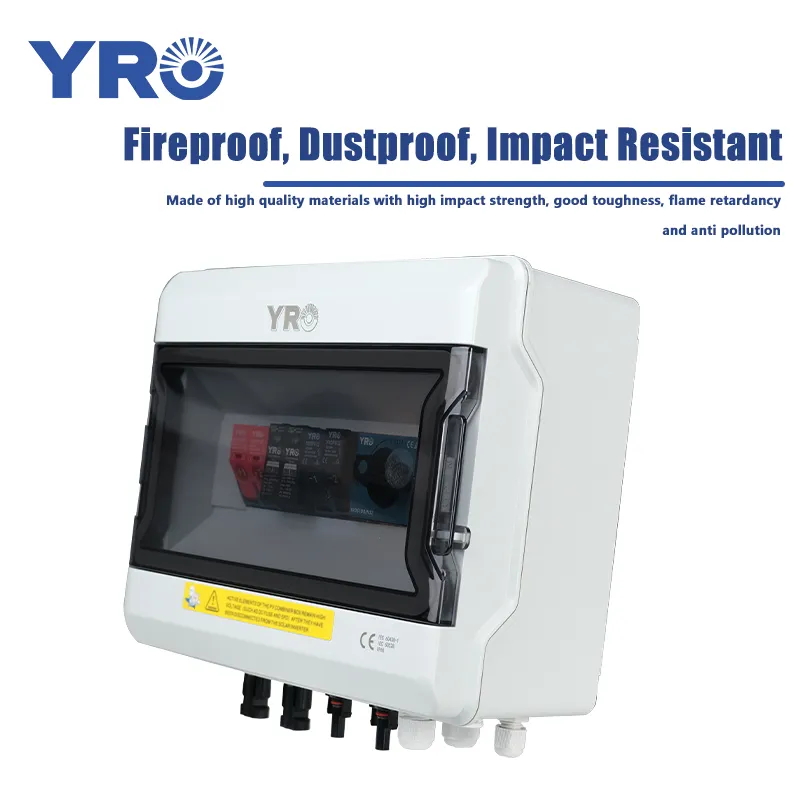

Case shell waterproof rating IP65. The number 6 on the front means dust-proof, and the number 5 on the back means that it can prevent low-pressure water from all directions. This makes the junction box not afraid of wind, rain, sand and dust attack outside.

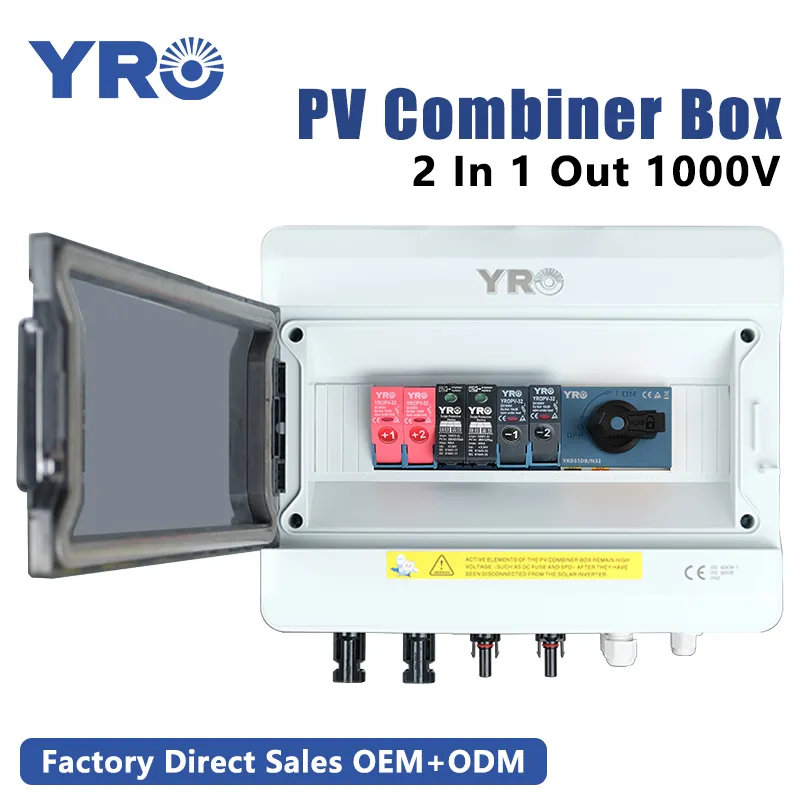

You can customize the appearance, color, and number of input channels (for example, 4 in and 1 out) as required.
Product Description
- Complete certification, reliable quality: obtained CE certification, in line with European standards, product quality is guaranteed.
- Strong protection, good adaptability: IP65 protection grade, dustproof and waterproof, can work stably in harsh environments.
- Intimate design, convenient operation: isolation switch color is unique, high recognition, easy to operate, reduce errors.
- Support customization, high flexibility: Provide OEM services to meet the individual needs of different customers.
Product Feature
Apart from the color eye-catching, is blue, and ordinary black or gray switch is different, easy to identify.
Internal wiring planning is reasonable, the use of high quality wires, stable current transmission, low energy loss.
Housing with ventilation structure to prevent excessive internal temperature.

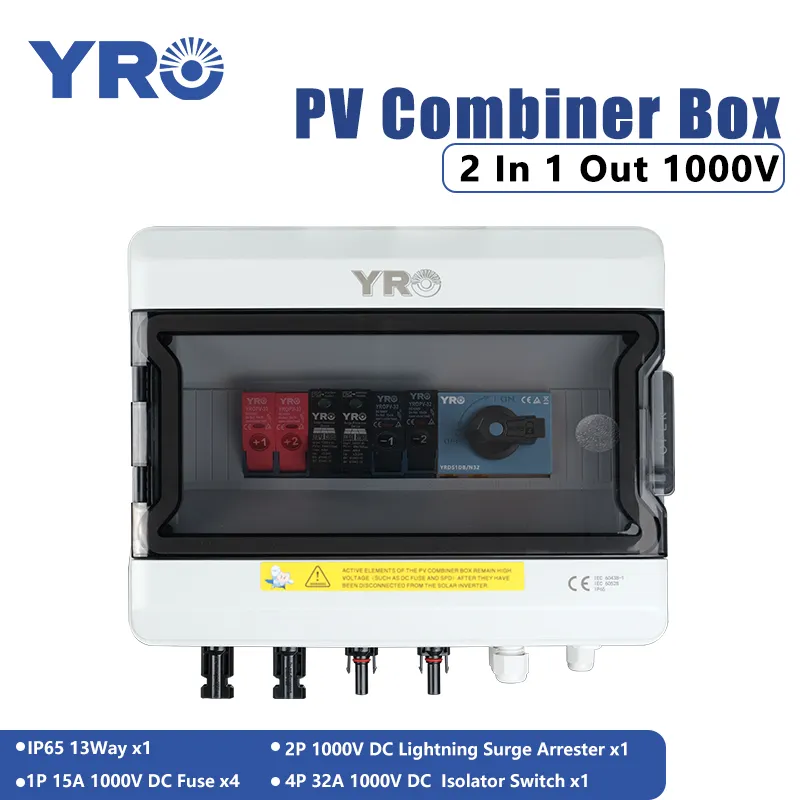

Product Parameters
| Product Series | YRPVB-2/1 ISO DC 1000V |
| Protection Level | IP 65 |
| Max Operation Voltage | 1000V |
| Default Fuse | 15A 1000V |
| Isolator Switch | 4P 32A 1000V |
| Surge Protector | 2P 40kA 1000V |
| Solar Connector | 30A 1000V |
