Electrical Manual Transfer Switch 2P+2P Interlocking Circuit Breaker
Electrical Manual Transfer Switch 2P+2P Interlocking Circuit Breaker

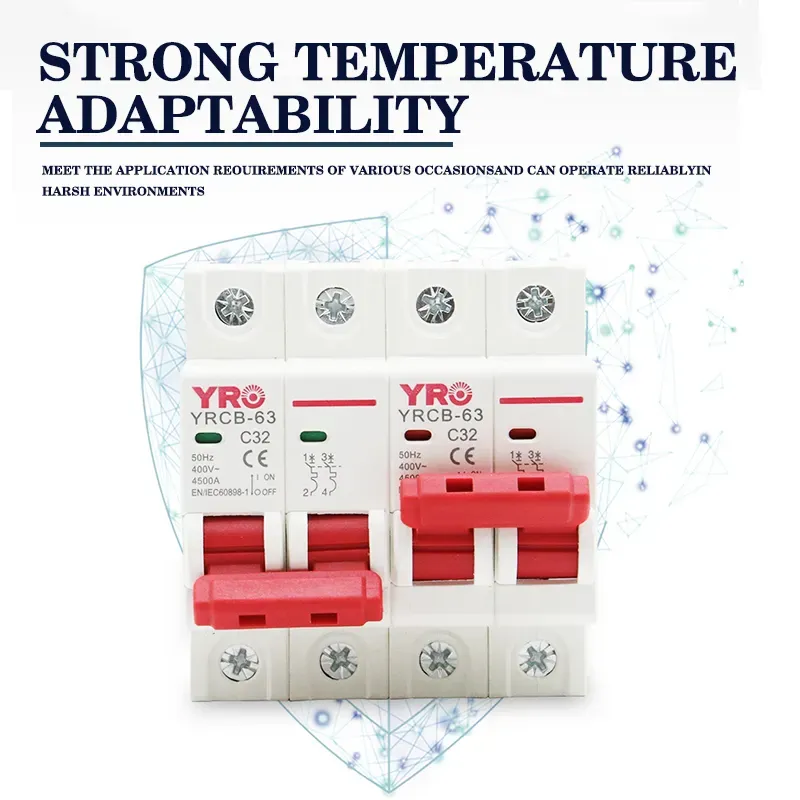

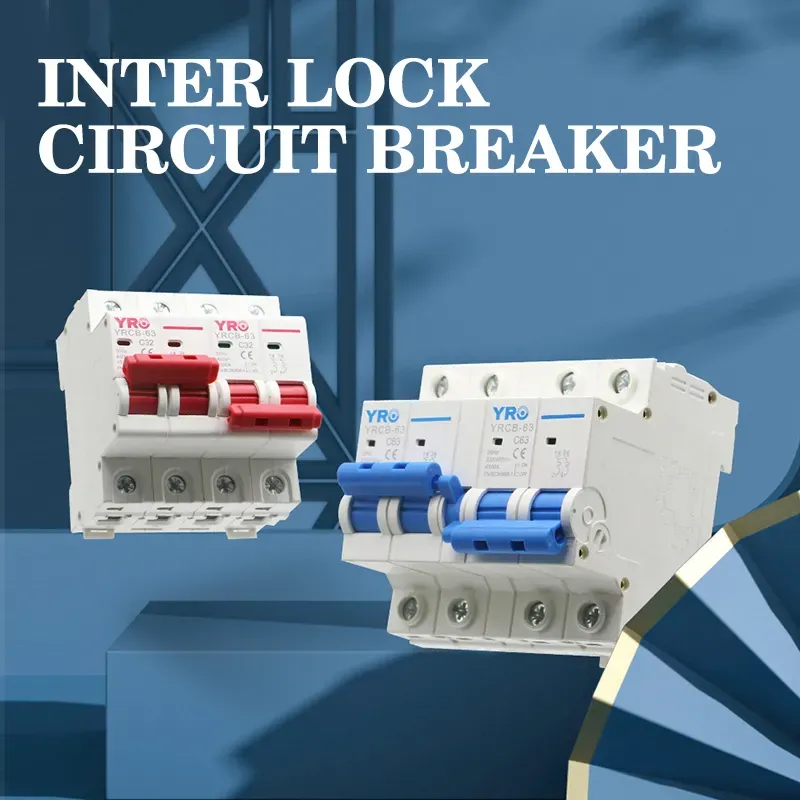

The YRO interlocking circuit breaker, through the mechanical interlocking rod, ensures that the circuit breakers of the two power sources cannot be physically closed simultaneously, avoiding reverse power supply or circulating current caused by the parallel connection of the main and backup power sources. Interlocking circuit breakers have a wide range of application scenarios. The ones produced by YRO are suitable for dual power switching systems.
GET A QUOTE
This content will appear inside a popup…
Product Introduction
The dual power manual transfer switch of YRO, can be installed in the distribution box to connect two input power sources. When one of the power supplies is cut off or there is an over voltage or under voltage situation, the user only needs to gently push the handle to the “standby” position, to switch the load to the other line. The entire switching process does not require any batteries, electromagnets or complex electronic control, and is accomplished solely by mechanical structure.
This switch has passed the CE certification, so there is no need to worry about quality issues. Compared with automatic transfer switches (ATS), manual transfer switches have a simpler structure, a lower failure rate, and do not rely on programs or sensors. Therefore, they can still switch reliably in extreme environments.
The installation of MTS is very convenient. Clamp the product onto the 35mm guide rail, connect the dual power lines and load lines as instructed, and secure the handle position before putting it into use.
Product Description
Mechanical interlock: This product uses connecting rods to exchange power. Its advantages are high reliability and immunity to electromagnetic interference. However, its disadvantage is that it is not flexible enough and is suitable for installation in low voltage control cabinets and PLC systems.
CE Certification: Meets the safety and performance requirements of IEC 60898-1 standard, providing greater peace of mind in use.
Low price: The price is half that of the automatic model, offering high cost performance.
Multiple specifications available: It offers a variety of current specifications such as 32A, 40A, 63A, and 125A to meet the demands of different loads.
Product Feature
- Misoperation: After the right handle is pushed up, the left one cannot be operated. This is a misoperation function. This misoperation protection mechanism can effectively prevent two power supplies from being connected simultaneously.
- Multiple pole numbers: 1P/2P/3P/4P;
- Electrical life: 10,000 times

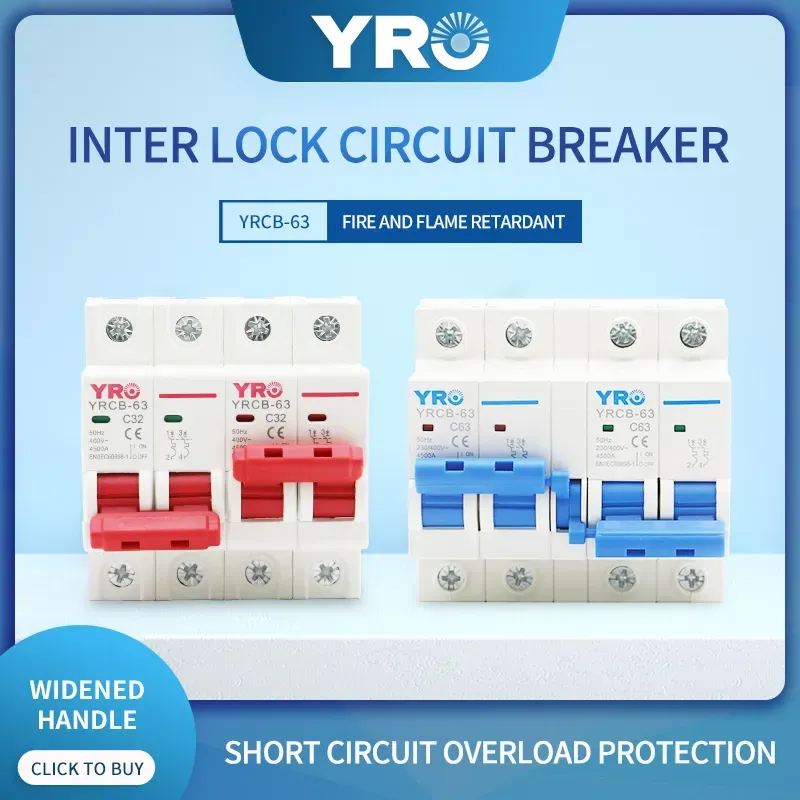

- Thickened handle: The handle has been widened and thickened, making it easy to operate even with gloves on.
Product Parameters
| Product Series | YRMTS-63 |
| Pole | 2P+2P |
| Rated Current | 63A |
| Rated Voltage | 230V |
| Breaking Capacity | 6kA |
| Ambient Temperature | 20 ~ +70℃ |
