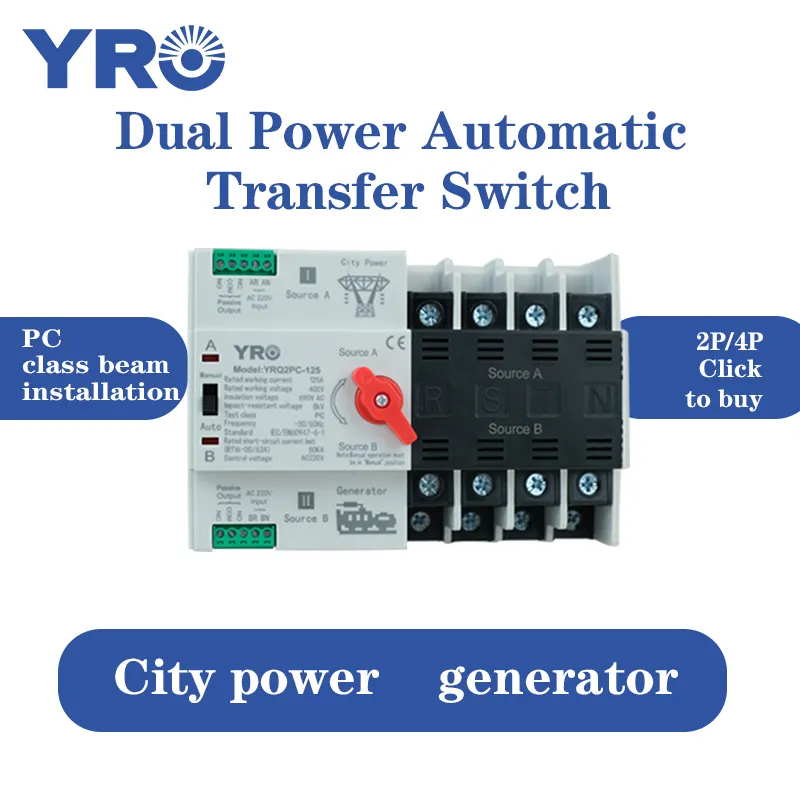

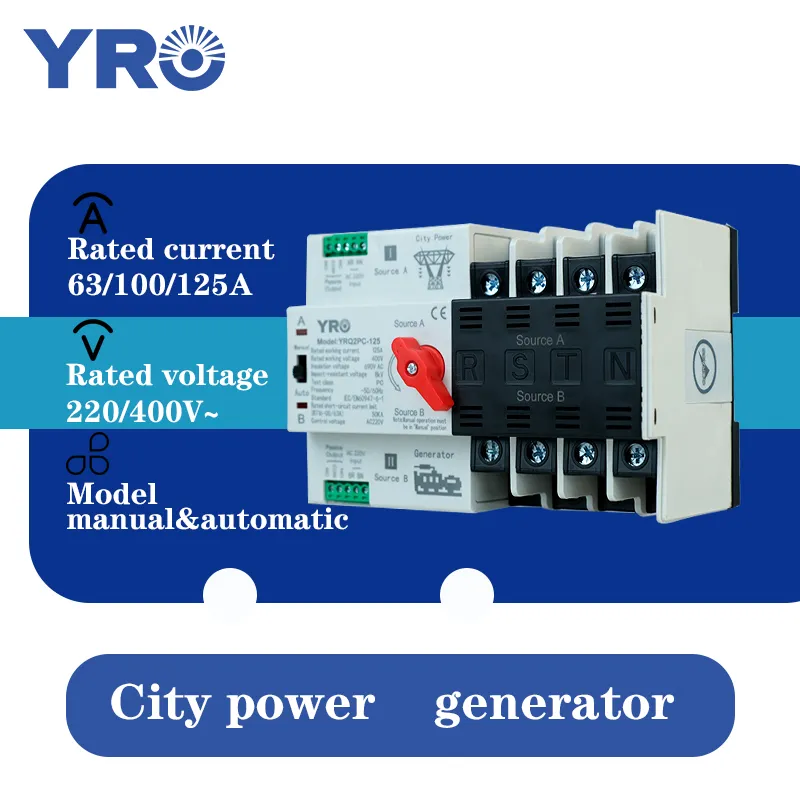

4P ATS Generator Type CE Certified Manufacturers Price
4P ATS Generator Type CE Certified Manufacturers Price
The YRO generator type automatic transfer switch is designed for households and businesses, that rely on both utility power and a backup generator. It automatically switches between the two power sources to ensure continuous electricity supply during outages.
GET A QUOTE
Product Introduction
If your backup power supply is a generator, then this YRO generator model ATS will be very suitable for you. It can continuously monitor the power supply status: when the mains power is interrupted, it can switch from mains power to generator power supply within 30 milliseconds. When the mains power is restored, it can automatically switch back to the mains power mode, and the entire process does not require manual operation.
The raw materials of this product have been comprehensively upgraded, bringing higher reliability and a more stable user experience.
Another particularly thoughtful design is the automatic indication handle. If the mains power is currently in use, the handle will automatically point to “Source A”. If switched to the generator, it points to “Source B”, and the user can understand at a glance where the power comes from.
This product has passed the CE certification and complies with the safety standards of Europe. Whether installed in a home, a shop or a small workshop, it is a stable and reliable power switching option.
This product is suitable for the usage environment where the main power supply is mains power, and the backup power supply is a generator. It operates fully automatically and users do not need to operate it manually.
Product Description
- It continuously monitors both sources and automatically switches from utility power to generator during outages, and switches back once the grid is restored—no manual input required.
- With a fast transfer time of just 30 milliseconds, the switch ensures minimal disruption.
- CE certification ensures that the device meets European safety and quality regulations.
Product Feature

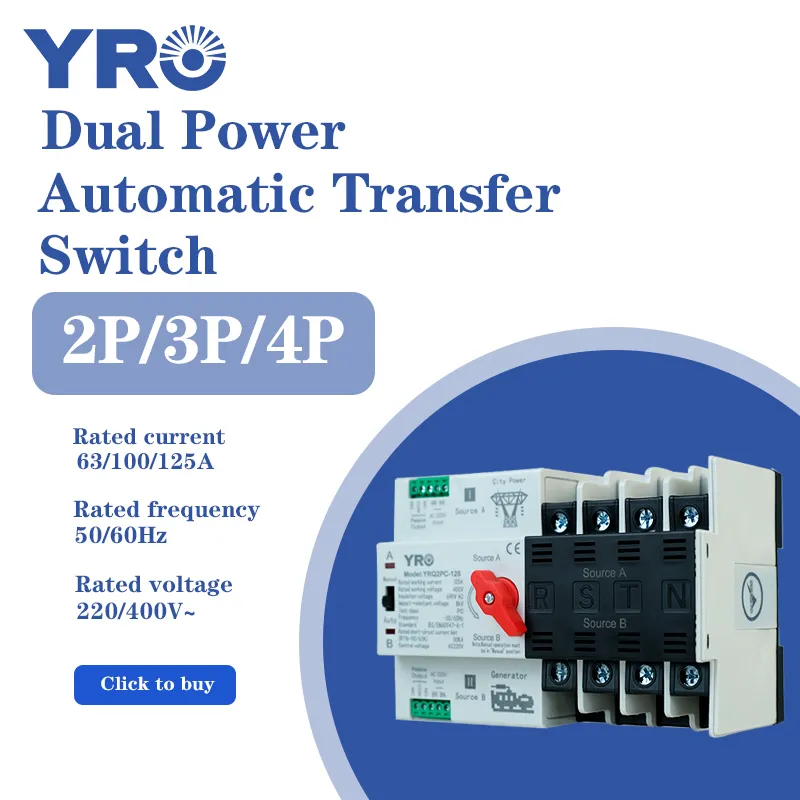

- Available in 2P, 3P, and 4P versions to suit single-phase and three-phase applications.
- The handle serves as a clear visual indicator of the active power source, aiding in maintenance and inspection.
- The operating temperature range is -25°C to +60°C, suitable for various climate conditions.

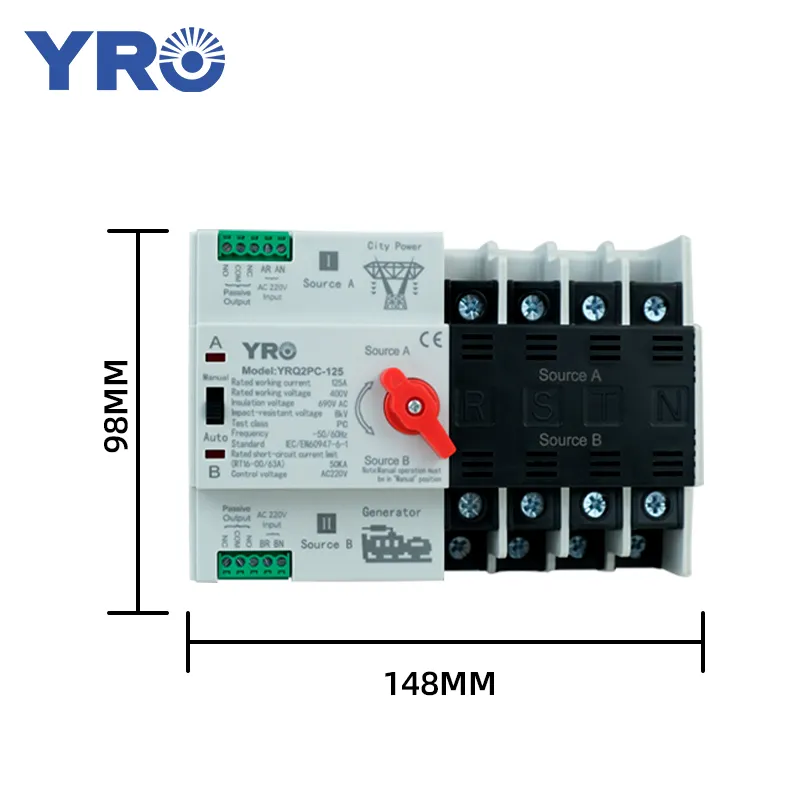

Product Parameters
| Product Series | YRQ2PC-125 |
| Pole | 4P |
| Rated Current | 125A |
| Rated Voltage | 400V |
| Changeover Time | ≤30ms |
| Operation Voltage | 180~270V |
| Ambient Temperature | -20 ~ +70℃ |
