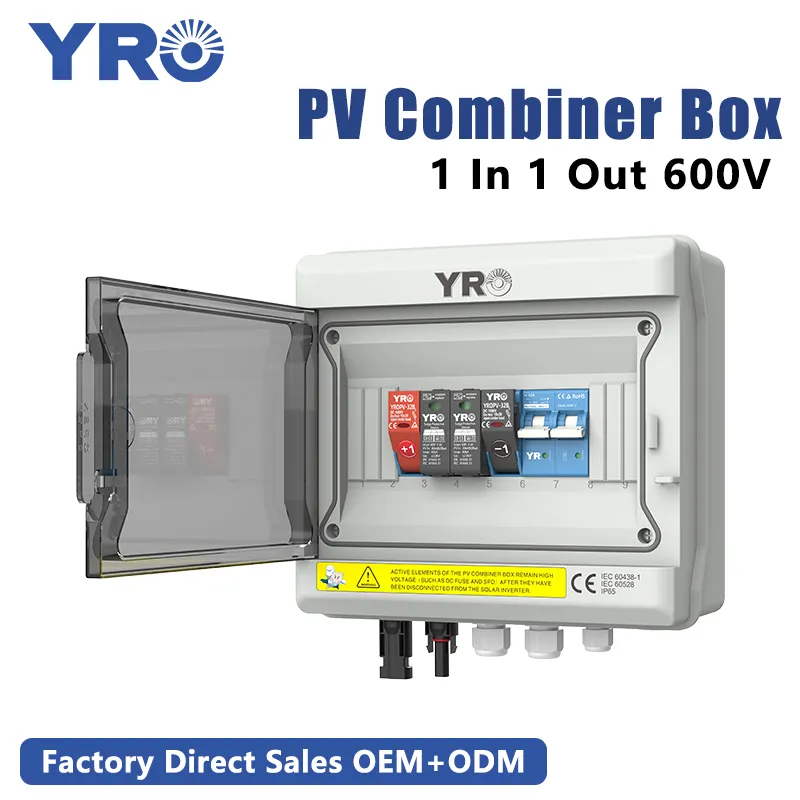

1 In 1 Out 600V Solar Panel Junction Box New Design
1 In 1 Out 600V Solar Panel Junction Box New Design

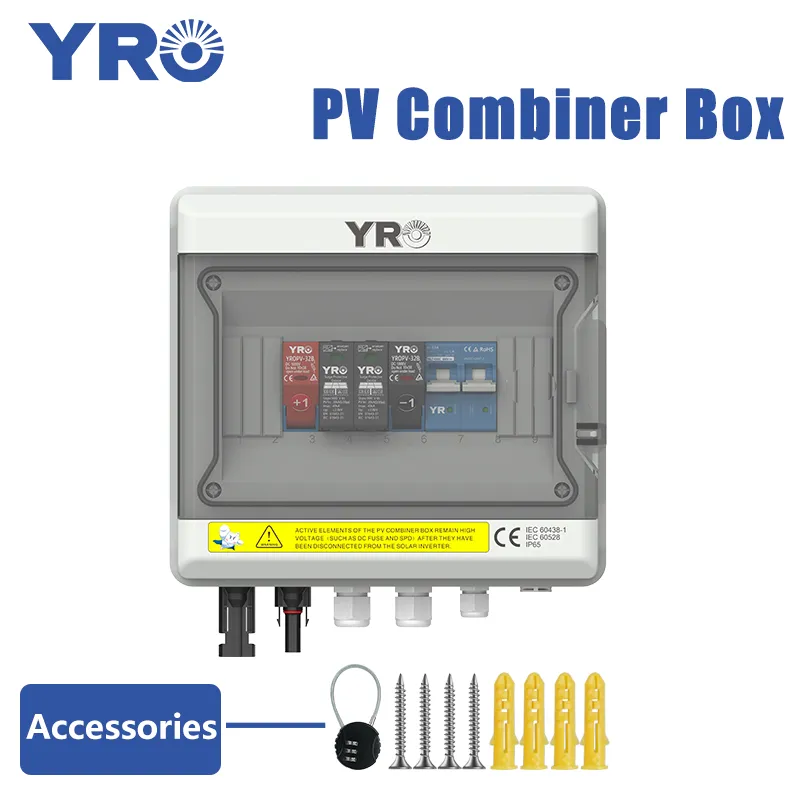

Use the YRO 1 in 1 out 600V photovoltaic combiner box to centralize electrical connections and reduce system complexity.
Effectively consolidate direct current from multiple solar panels to enhance energy output stability.
Built in safety mechanisms prevent overloads, short circuits, and minimize environmental risks, protecting your solar equipment.

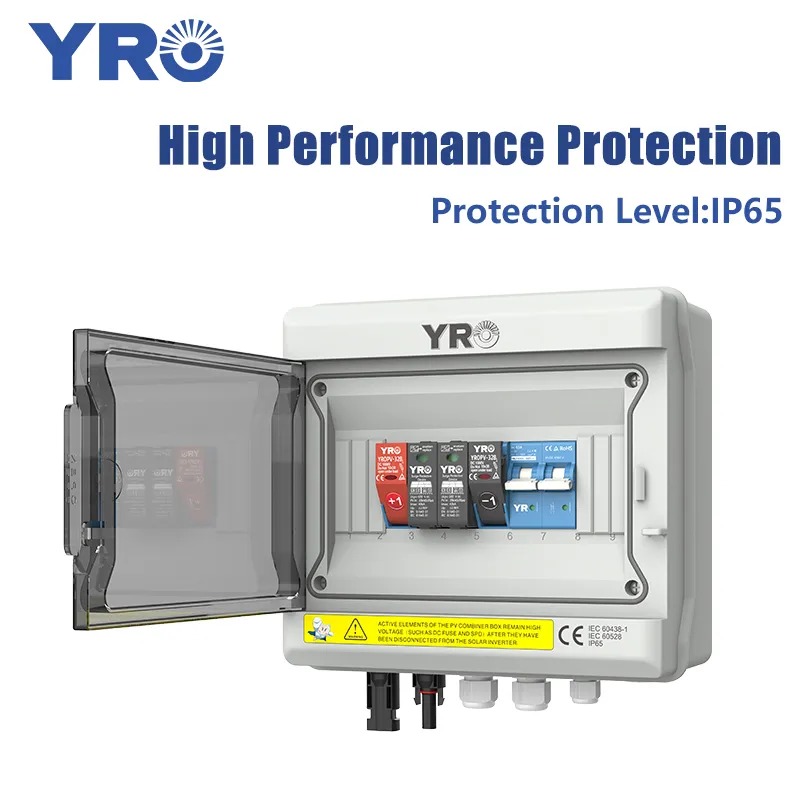

Designed with an IP65 rated durable enclosure, it is suitable for various outdoor conditions, ensuring long lasting performance.
Certified to CE standards, this product guarantees safety and reliability, making it an ideal choice for solar power systems.
GET A QUOTE
This content will appear inside a popup…
Product Introduction
The PV combiner box is the key equipment of the DC side of the photovoltaic system, which is responsible for the efficient collection of the current of the multi-channel photovoltaic series into a single output, and provides overcurrent, short circuit, lightning protection and other protection functions. The YRO junction box ADAPTS to the electrical parameters of the mainstream photovoltaic modules, and is suitable for a variety of small photovoltaic scenarios.
Product Description
- Four protection mechanisms: over current protection, surge protection, countercurrent protection, overload protection synergies.
- CE certification: Combinerbox protection shell and internal protection components have passed CE certification.
- OEM: YRO box supports customization. In terms of appearance, we can customize the exclusive Logo on the shell; In terms of internal structure, the existing components can also be replaced with other adaptive components according to your needs.
Product Feature
Easy maintenance: Transparent observation window design, you can check the status of components without opening the box.

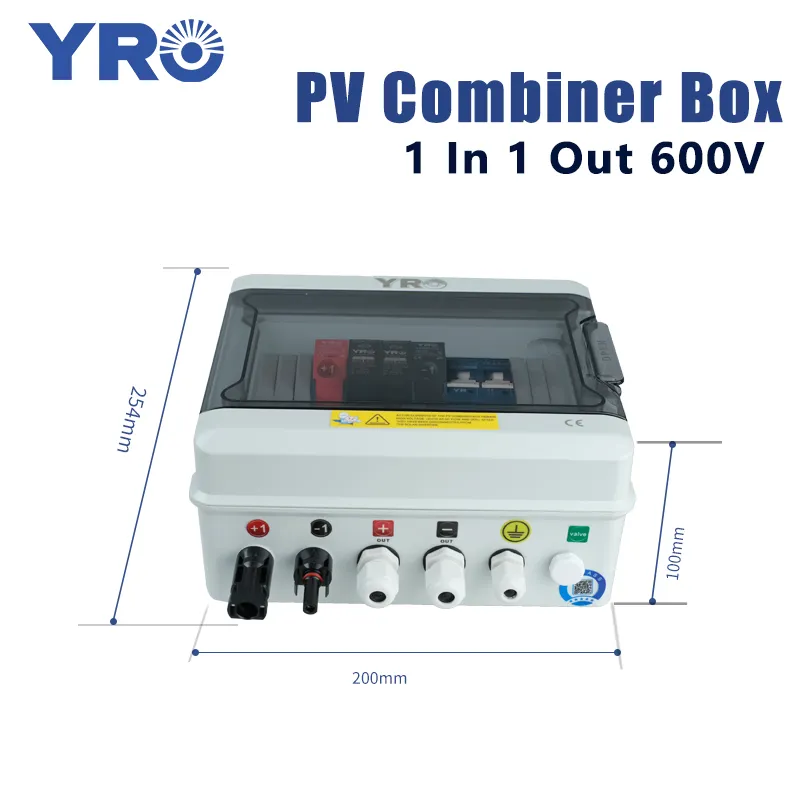

Installation mode: wall mounted installation, horizontal or vertical cabling is supported, and cable inlet and outlet holes and ground bolts are reserved for the box.
Heat dissipation design: The box has good heat dissipation performance, to prevent the internal components from affecting the life and performance due to overheating.

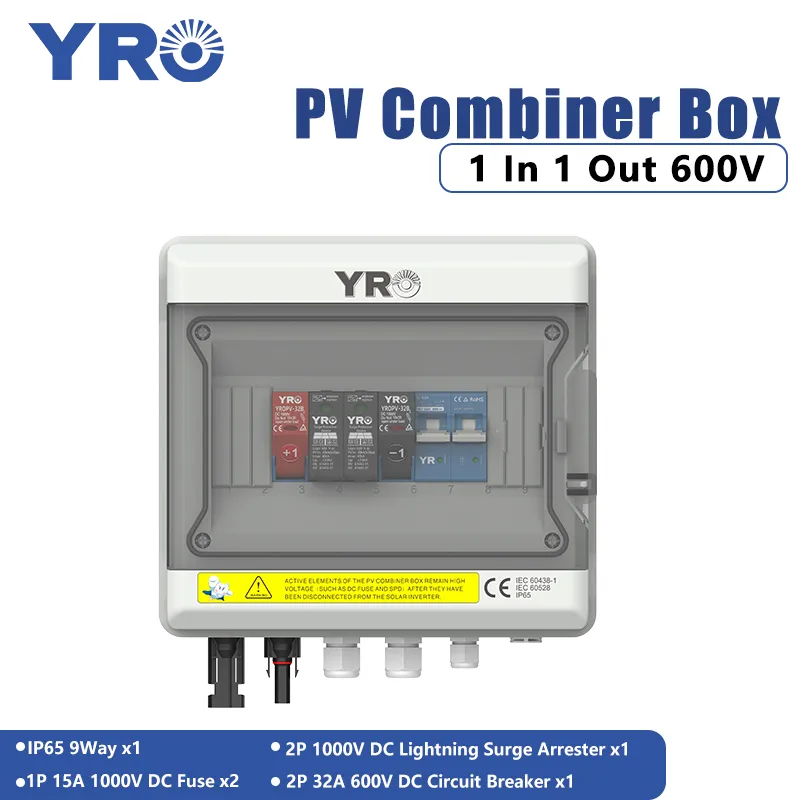

Product Parameters
| Product series | YRPVB-1/1 CB DC 600V |
| Protection Level | IP 65 |
| Max Operation Voltage | 600V |
| Default Fuse | 15A 1000V |
| Circuit Breaker | 2P 32A 600V |
| Surge Protector | 2P 40kA 600V |
| Solar Connector | 30A 1000V |
